Khoom Taw Qhia:

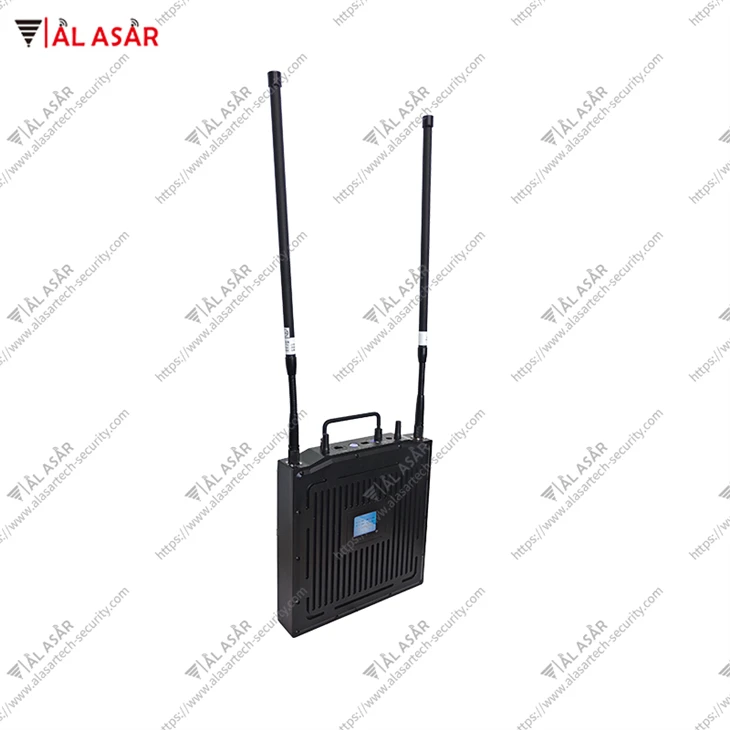

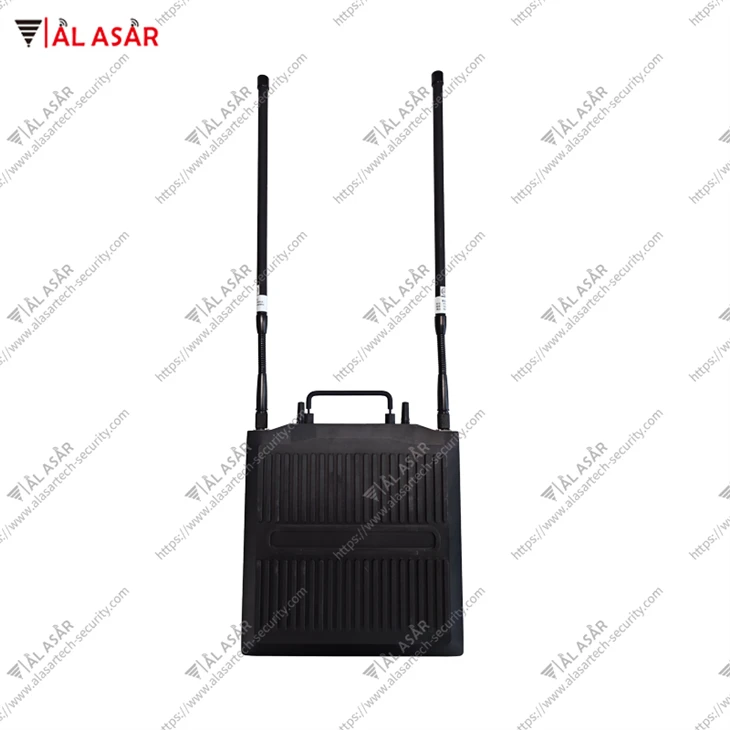

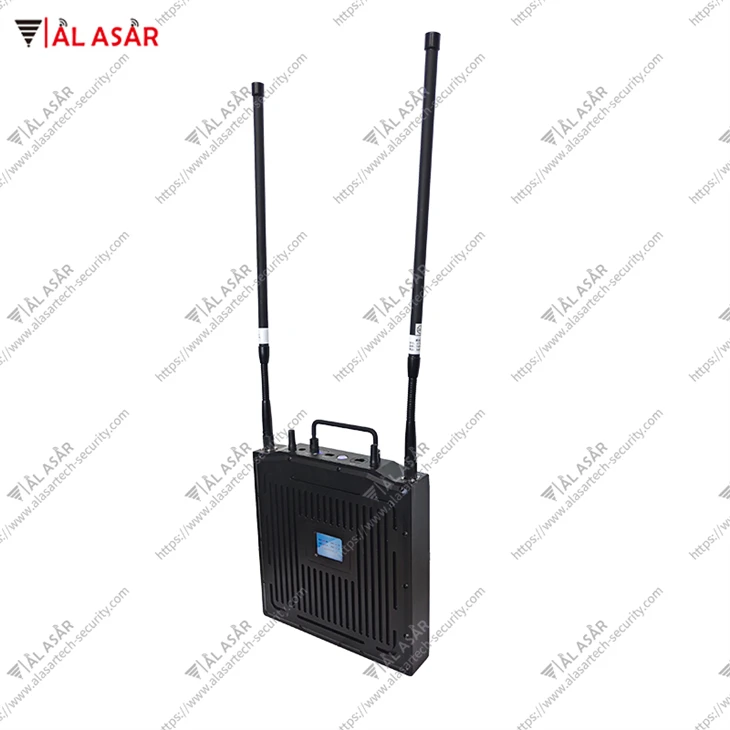

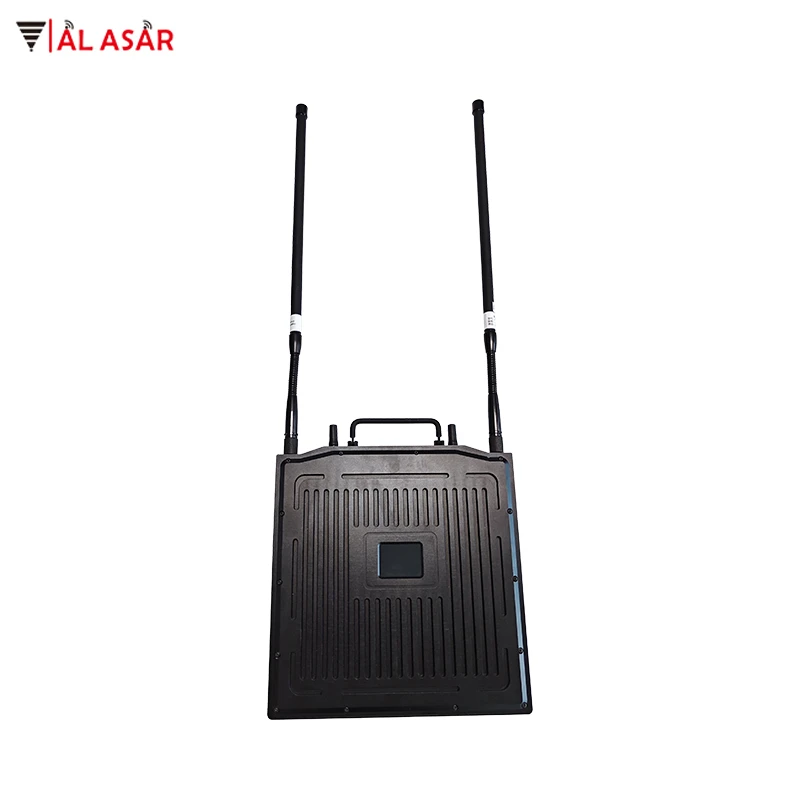

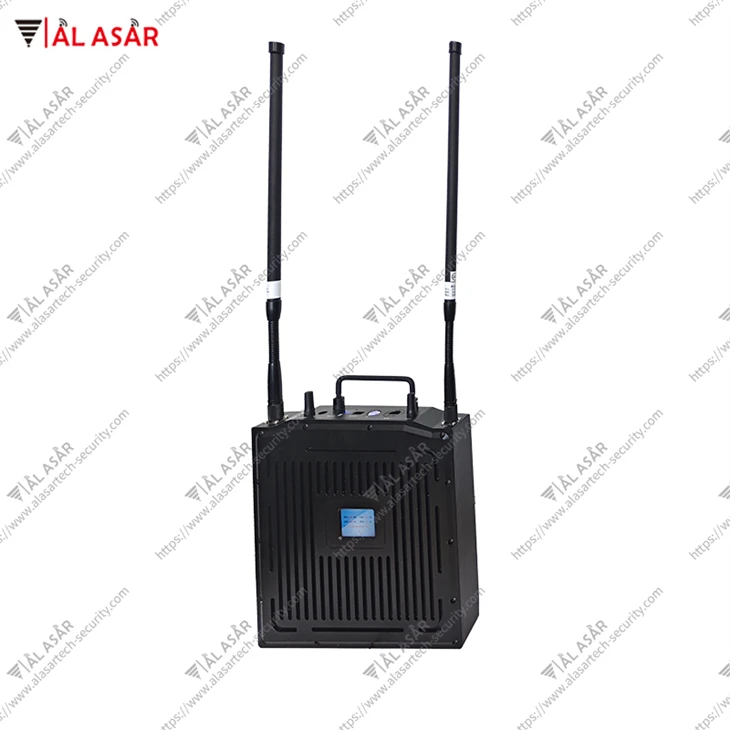

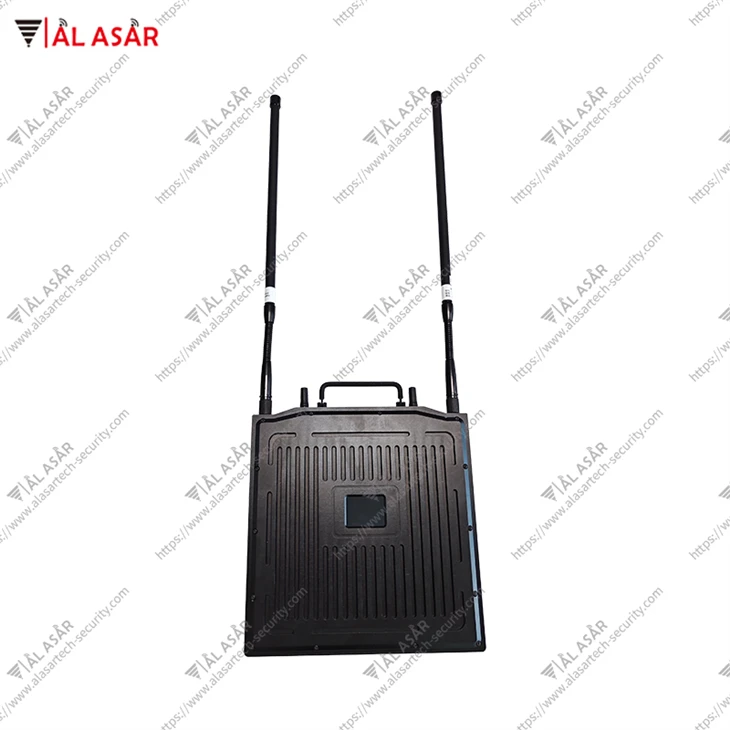

Backpack Ad Hoc Mesh Repeater self-organizing network radio: me me, lub teeb yuag, nruab nrog cov roj teeb uas muaj peev xwm ua tau zoo, yooj yim rau ib leeg tub rog nqa, tso siab rau lawv txhais tes.
Ad Hoc Mesh Repeater Fast network nkag tau thiab tsis siv neeg ntau lub hop relay tuaj yeem muab kev hu xov tooj rau pab pawg, video xa rov qab, kev xa rov qab thiab lwm yam kev sib txuas lus sib txuas lus rau ib leeg tub rog, pab pawg sib tw, thiab tub ceev xwm dev kom ua tiav kev sib koom tes siab.
Beidou GPS qhov chaw ua haujlwm, kuj txhawb wifi kev pab them nqi, tuaj yeem koom tes nrog cov ntse terminals nrog wifi muaj nuj nqi rau ntau yam kev sib txuas lus.
Lub kaw lus siv tib lub sijhawm sib txuas lus thiab ntau lub hop relay, thiab txhawb nqa txhua lub network topology, xws li point-to-point, point-to-multipoint, chain relay, mesh network thiab hybrid network topology.
Nws tuaj yeem muab kev sib txuas lus wireless rau "kev sib haum xeeb thiab kev kub ntxhov" xws li cov lus teb thaum muaj xwm txheej ceev, kev tiv thaiv kev ua phem thiab kev tawg, kev tshawb nrhiav zais cia, kev ua haujlwm tshwj xeeb, kev pab daws teebmeem, kev saib xyuas txhua hnub, thiab lwm yam.
Ad Hoc Mesh Repeater Qhov kev ncua deb tuaj yeem ncav cuag ntau dua 10km hauv qhov chaw qhib hauv av, 300 ~ 1000m hauv qhov chaw thaiv (nyob ntawm qhov thaiv qhov chaw), thiab ntau tshaj 30km ntawm huab cua mus rau hauv av.
Khoom nta
Kev tiv thaiv kev puas tsuaj: Kev ua tsis tiav ntawm ib lub cuab yeej yuav tsis cuam tshuam rau kev siv lwm yam khoom siv hauv tag nrho
qhov system.
Tsis nyob ntawm lub hauv paus chaw nres tsheb, ua tau zoo thiab sai sai tsim ib tug decentralized wireless broadband network
Txhawb TCP/IP/UDP network raws tu qauv, tag nrho IP networking, yooj yim interconnection, tshaj IP raws li lub suab, ntaub ntawv, thiab video kev pab cuam
Txhawb nqa multi-hop relay, uas tuaj yeem nthuav dav lub vojvoog ntawm wireless network
Txhawb electromagnetic ib puag ncig saib xyuas
Txhawb tej thaj chaw deb parameter hloov
Txhawb kev hloov ib-nias ntawm bandwidth, zaus, hwj chim, mesh ID thiab lwm yam tsis
Txhawb kev saib xyuas channel raws sijhawm, saib spectrum teeb liab lub zog, txhawb kev saib xyuas cov khoom sib txuas raws li txoj cai los ntawm daim ntawv qhia topology
Txhawb offline map, online map
Technical parameters
|
RF yam ntxwv |
|
|
Ua haujlwm zaus: |
300MHz -5.8GHz (Frequency band tuaj yeem hloov kho) |
|
Ua haujlwm bandwidth |
5/10/20/40 MHz |
|
RF Channel |
2T2R |
|
Xa lub zog |
2*5W |
|
Kev sib txuas lus nrug |
Ib leeg-hop kis tau zoo dua los yog sib npaug rau 5km (kab-ntawm-pob qhov muag pom) |
|
Modulation |
QPSK, 16 QAM, 64 QAM |
|
Tau txais rhiab heev |
-103dBm@10MHz |
|
Network yam ntxwv |
|
|
Qhov siab kawg kis tus nqi me ntsis |
95mbps ua |
|
Network raws tu qauv |
TCP/UDP |
|
Wireless Security |
Zam kev txais cov teeb liab tsis raug cai thiab kev lees paub qhov tseeb ntawm cov khoom siv |
|
Tus naj npawb ntawm cov nodes |
255 pkt |
|
Lub sijhawm nkag mus rau lub network |
Multi-point networking lub sij hawm Tsawg dua los yog sib npaug rau 60s |
|
Relay hop suav |
8 hops, tus nqi zoo tom qab 8 hops tsis tsawg dua 4Mbps |
|
Network topology |
Centerless network, hnub qub network, saw network, mesh network |
|
Encryption |
AES 128/256 |
|
Cov yam ntxwv yooj yim |
|
|
Hom neeg siv |
Txhawb nqa handheld, hnab ev khoom, thiab kev ruaj ntseg-point tswj rau pem hauv ntej-kawg nkag |
|
Zaub |
2-inch kov npo, txhawb kev teeb tsa, cov khoom siv xwm txheej thiab teeb pom kev zoo |
|

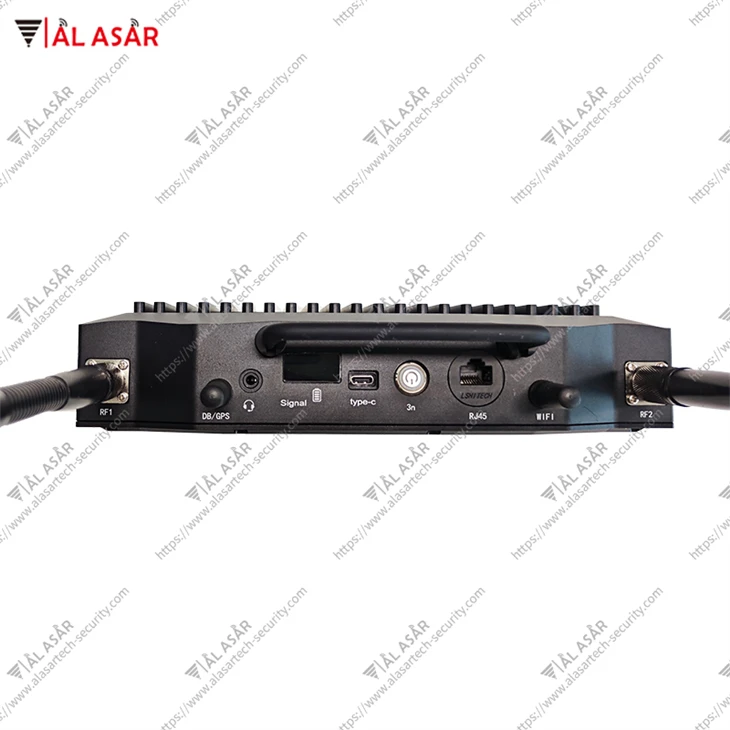

Interface |
SMA Chaw nres nkoj * 2, RJ45 * 1,3.5mm Lub mloog pob ntseg * 1 |
|
WIFI |
Txhawb 2.4G / 5.8G |
|
Positioning module |
Txhawb Beidou / GPS |
|
Suab intercom |
Txhawb nqa |
|
Lub sijhawm ua haujlwm |
Built-in roj teeb, Lub sijhawm ua haujlwm tsis tu ncua Ntau dua lossis sib npaug li 6H |
|
Charge chaw nres nkoj |
Hom-C interface, txhawb kev them nyiaj ceev, txhawb kev them nyiaj thaum siv |
|
Lwm yam |
|
|
Dimension |
280mmx250.5mmx71mm (L * W * H) |
|
Net nyhav |
1. 0kg |
|
Ua haujlwm ib puag ncig |
Kub -25 degree -+55 degree ; txheeb ze humidity 90% |
|
Cia ib puag ncig |
Kub -40 degree -+85 degree ; txheeb ze humidity 90% |
