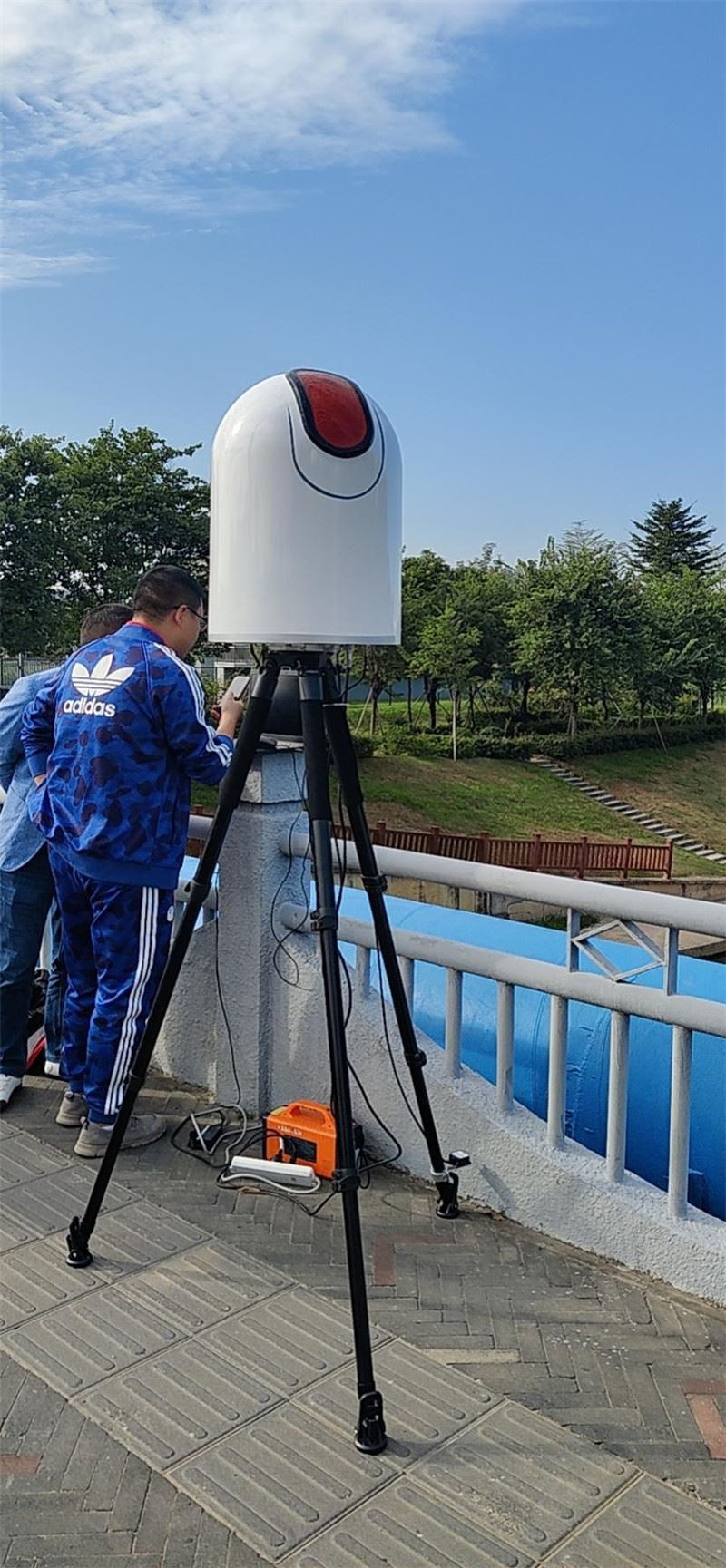

Anti Drone Detection System

Yam khoom

Tsis muaj

Tshawb nrhiav thiab jamming khoom siv subunit

1.1 Kev Tshawb Fawb tau txais ntau zaus: 10MHz 6GHz

1.2 Tiag -time bandwidth: 480MHz

1.3 Plaub kab cuam tshuam

1.3.1 900-930MHz (kev lag luam drone) 20W

1.3.2 1559-1610MHz (GPS cuam tshuam) 10W

1.3.3 2400-2485 MHz 25W

1.3.4 5725-5850MHz 50W

1.4 Kev kuaj pom thiab sib nrug deb

1.4.1 Kev ntsuas qhov deb: 3-5KM (ib puag ncig hauv nroog); 6-12KM (suburban tshwj xeeb tshaj yog qhib ib puag ncig)

1.4.2 Jamming nrug: 1-1.5KM (100 meters siab);

1.5 Kev txheeb xyuas qhov tseeb: 9.3 degree (cov ntaub ntawv qhia kev xeem)

1.6 Kav hlau txais xov

1.6.1 Ntau zaus: 380MHz-6GHz

1.6.2 Kab rov tav pom lub kaum sab xis: 0 degree - 360 degree

1.6.3 Vertical detection angle: -30 degree - ntxiv rau 90 degree

1.7 Tag nrho lub tshuab (lub cuab yeej yog ib qho kev tshawb nrhiav thiab kev ntsuas ntsuas)

1.7.1 Kev siv hluav taws xob siab tshaj plaws: 300W

1.7.2 Ua haujlwm kub: -20 degree ntxiv rau 60 degree

1.7.3 Cia kub: -40 degree ntxiv rau 70 degree

1.7.4 Nyhav: 12.25KG

1.7.5 Loj: txoj kab uas hla 400mmheight 555mm

Kav hlau txais xov bracket

2.1 Qhov hnyav: 4.32KG

2.2 Loj: txoj kab uas hla 260mm kaw qhov siab 923mm

Khoos phis tawj

Laptop, nas, adapter, network cable. (tuaj yeem txuas nrog lub hauv paus tswj HDMI zaub)

Spectrum system software thiab kev ua haujlwm

4.1 DRONE kev txheeb xyuas thiab muab tso rau: Siv xov tooj cua spectrum nrhiav kom tau, nws tuaj yeem txheeb xyuas thiab nrhiav tau 8 DRONE qauv tib lub sijhawm, cia li tso lub qhov rai nrhiav pom, txheeb xyuas cov duab DRONE, tso saib DRONE qauv, azimuth, siv zaus, theem thiab nrug. , qhov ploj ntawm lub drone tau tshem tawm thiab rov kho cov txiaj ntsig tshawb pom.

4.2 Kev qhia ceev ceev thiab qhov chaw: lub sijhawm qhia<1s; measured="" bearing,="" time=""><3s. within="" the="" detection="" range="" of="" line-of-sight="" conditions,="" the="" unmanned="" aircraft="" can="" be="" identified="" and="" positioned="" when="" it="" is="" turned="">

4.3 Cov ntawv txheeb xyuas cov txiaj ntsig: Cov npe yuav tso tawm cov drone thiab cov qauv, sijhawm, azimuth, thiab cov ntaub ntawv nyob deb, thiab tuaj yeem xa tawm raws li daim ntawv tshaj tawm.

4.4 Ib leeg- chaw nres tsheb chaw nres tsheb: Siv xov tooj cua spectrum nrhiav kom pom, qhov kev ncua deb ntawm tus drone thiab tus neeg teb xov tooj tuaj yeem ntsuas kwv yees los ntawm txoj kev sib txawv hauv cov xwm txheej ntawm ib qho chaw nres tsheb thiab ib qho chaw.

4.5 Daim ntawv qhia zaub mov muaj nuj nqi: Tso saib txoj haujlwm ntawm lub drone thiab tus neeg teb xov tooj ntawm 2D (3D) daim ntawv qhia, thiab tso saib cov ntaub ntawv xws li latitude, longitude thiab nrug. Daim ntawv qhia zaub mov muaj nuj nqi: Tso saib txoj haujlwm ntawm lub drone thiab tus neeg teb xov tooj ntawm 2D (3D) daim ntawv qhia, thiab tso saib cov ntaub ntawv xws li latitude, longitude thiab nrug.

4.6 Kev kuaj pom thiab tiv thaiv lub kaum ntse ntse tuaj yeem teeb tsa: Raws li qhov ntsuas thaj chaw, yog tias muaj lub roob siab lossis lub siab siab - nce siab tom qab, thiab tsuas yog DRONE pem hauv ntej yuav tsum tau tiv thaiv, lub kaum sab xis ntawm kev tiv thaiv tuaj yeem teeb tsa arbitrarily, uas tuaj yeem tshem tawm qhov tsis tseeb ntawm lub kaum sab xis tshwm sim los ntawm cov teeb liab xav txog.

4.7 Distance calibration: Rau qhov sib txawv electromagnetic ib puag ncig, yuav muaj teeb meem nyob rau hauv qhov deb nrhiav kom pom. Lub kaw lus tuaj yeem muab kev ntsuas ntsuas qhov deb, cia lub drone ya 100 meters ntawm qhov deb ntawm 500 meters, thiab lub kaw lus yuav cia li ntsuas qhov ntsuas qhov deb kom pom qhov ntsuas qhov deb yog qhov tseeb dua.

4.8 Kev kuaj xyuas zaus band tuaj yeem teeb tsa: Raws li qhov tseeb zaus band siv los ntawm drone, qhov kev tshawb nrhiav zaus band tuaj yeem nkag mus thiab kho kom pom tau zoo dua, thiab nws tsis tas yuav tsum luam tawm tag nrho cov zaus bands rau kev kuaj pom.

4.9 Tag Nrho Zaus Band Pom Zoo: Cov zaus band kuaj pom los ntawm cov khoom siv hauv lub cev yog los ntawm 10MHz-6GHz, thiab cov kav hlau txais xov cov zaus band yog 380MHz-6GHz. Nws tuav ib tug zoo nce flatness nyob rau hauv tag nrho cov zaus band. Tus kav hlau txais xov nce yog los ntawm 5dBi-8dBi, uas tuaj yeem hloov mus rau ntau tshaj peb puas MHz. Kev tshawb nrhiav lub dav hlau tsis muaj neeg siv nyob rau hauv txhua qhov ntau zaus bands ntawm 6GHz, zaus hauv qab 380MHz kuj tuaj yeem kuaj pom, thiab qhov ntsuas qhov deb tau txo.

4.10 The remote control is the pilot positioning function: During the detection process, the system will identify and locate the remote control signal while detecting and locating all kinds of drones, which is the pilot positioning function. The actual measurement is large within the visible range. Xinjiang DRONE remote control detection and positioning distance is >800 m

4.11 Kev txawj ntse txuas kev tiv thaiv: Raws li qhov zaus band thiab azimuth ntawm DRONE kuaj pom, koj tuaj yeem xaiv qhov twg DRONE los tawm tsam. Lub kaw lus yuav cia li xaiv cov zaus band rau kev tiv thaiv, thiab cia li xa cov teeb liab ntawm qhov kuaj pom azimuth. Kev ntsuas ntsuas, qhov ntsuas qhov ntsuas tau zoo tuaj yeem nce ntxiv los ntawm 46 lub sijhawm, thiab nws tuaj yeem zam tag nrho cov zaus bands thiab txhua lub kaum sab xis kom kis tau tus mob, uas yuav tsis ua mob rau ib txwm muaj wifi thiab lwm yam kev sib txuas lus, thiab ua rau lub dav hlau tsis raug cai.

4.12 Model feature recording: Rau cov qauv tshiab, lub kaw lus tuaj yeem sau cov duab xa mus thiab zaus hopping feature cov ntaub ntawv, cia li kaw, thiab cia li pop up ib cov ntawv qhia zaub mov tom qab kaw, thiab nws tuaj yeem txheeb xyuas tus qauv lwm zaus. Cov ntaub ntawv tshwj xeeb tuaj yeem hloov kho raws li kev xav tau ntawm kev lag luam - qib unmanned aircraft.

4.13 Lub suab ceeb toom ua haujlwm: lub kaw lus yuav cia lub suab ceeb toom cov ntaub ntawv ceeb toom thiab cov haujlwm tseem ceeb.

4.14 Cov cuab yeej siv tus kheej- qhov chaw ua haujlwm: Lub kaw lus muaj peev xwm muab ob npaug rau GPS thiab Beidou, nrog rau nws txoj haujlwm. Nws tsis tas yuav manually kho lub azimuth, thiab txoj hauj lwm yuav muab tso rau arbitrarily.

4.15 Integrated detection and countermeasures and antennas: Cov khoom siv system txawv ntawm cov khoom siv kuaj pom thiab tiv thaiv ib puag ncig, tab sis suav nrog kev tshawb nrhiav, kev tiv thaiv thiab tag nrho -band antennas. Nws yog compact thiab yooj yim rau siv, ruaj khov thiab txhim khu kev qha, yooj yim siv, thiab haum rau kev xa tawm sai.

4.16 Tus qauv nta Air autonomous identification: Rau DRONE qauv uas lub kaw lus tsis muaj, lub kaw lus muaj kev ua haujlwm ntawm kev kawm thiab kev txheeb xyuas thiab kev txiav txim, thiab nws tau tshwm sim raws li tus qauv tsis paub. Yog tias koj paub tus qauv, nws tuaj yeem khaws cia rau hauv qhov system, thiab lub sijhawm tom ntej nws raug txheeb xyuas raws li tus qauv, qhov kev sib sau ua ke tsis raug cai ntawm lub dav hlau tsis muaj neeg tuaj yeem tuaj yeem ntes thiab muab tso rau.

4.17 Kev txheeb xyuas thiab muab tso rau ntawm kev lag luam- qib drones: Cov kev txawj ntse tshwj xeeb spectrum algorithm tsim tshaj li cov cuab yeej tshawb pom dav dav thiab tuaj yeem txheeb xyuas thiab nrhiav tau kev lag luam- qib drones, txawm tias cov drones sib sau ua ke, uas tsim nyog rau kev tiv thaiv thiab tswj cov neeg ua phem tawm tsam.

4.18 Qhib cov qauv tshiab DRONE teeb liab feature kaw cov haujlwm: Rau kev txhim kho tas li thiab hloov pauv DRONE cov cim, cov txheej txheem kaw tuaj yeem siv los txuas ntxiv cov ntaub ntawv khaws cia kom ntseeg tau tias cov cuab yeej tsis poob qab rau lub sijhawm ntev.

4.19 DRONE trajectory piav qhia muaj nuj nqi, tshawb nrhiav keeb kwm kev nug, software thiab cov ntaub ntawv hloov tshiab muaj nuj nqi, thiab lwm yam.

4.20 Txhawb VPN chaw taws teeb ua haujlwm thiab tswj kev ua haujlwm
