1, Txheej txheem cej luam

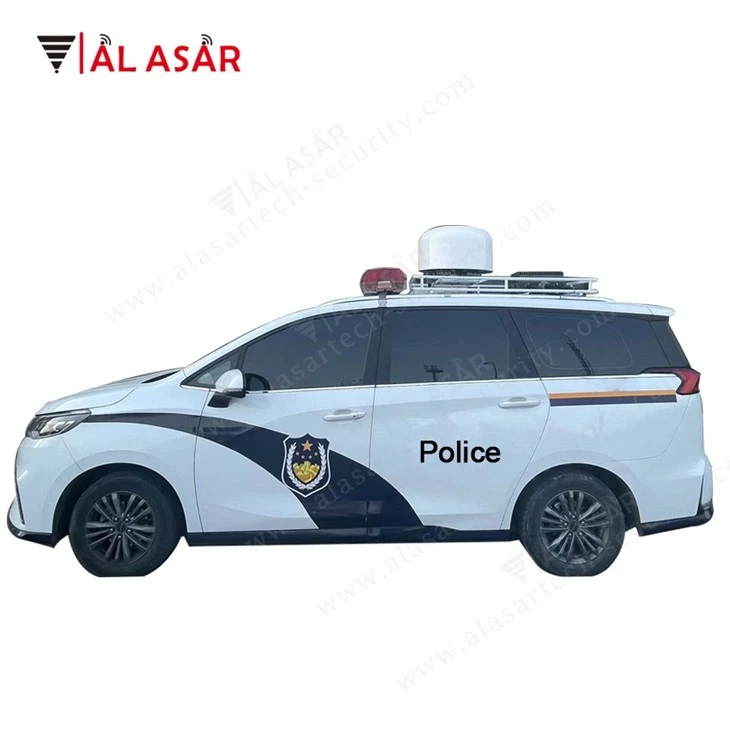

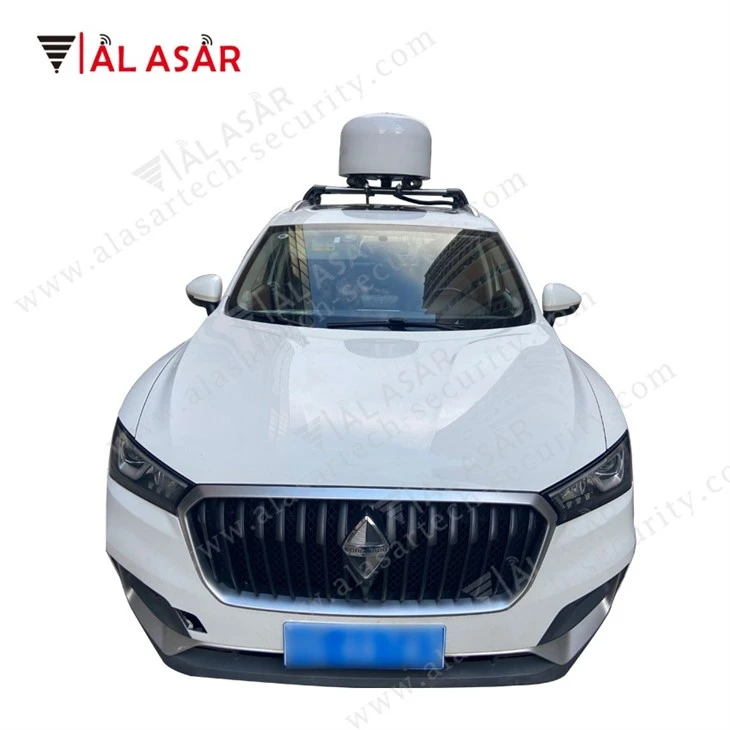

AAT-DJ-TJ203 tsheb mounted drone nrhiav kom tau thiab tswj cov khoom siv sib xyaw ua ke nrog kev tshawb nrhiav, qhov chaw, thiab cov ntsuas tiv thaiv, uas tuaj yeem ua tiav kev tshawb nrhiav, txheeb xyuas, qhov chaw, taug qab, thiab cuam tshuam pov tseg ntawm cov drones invasive. Cov cuab yeej no tuaj yeem saib xyuas tus lej xov tooj, qauv, txoj haujlwm (longitude, latitude, azimuth), ceev, qhov siab, qhov chaw nres tsheb, rov qab taw tes, trajectory, chaw taws teeb tswj txoj haujlwm (longitude, latitude, azimuth) thiab lwm yam ntaub ntawv ntau yam ntawm drones nyob rau hauv kev saib xyuas ntau yam los ntawm kev soj ntsuam sib sib zog nqus thiab cov ntaub ntawv mining ntawm drone signals. Cov cuab yeej siv kev tsim qauv kev lag luam, nrog rau qhov yooj yim thiab zais qhov pom, muaj zog ib puag ncig hloov pauv, hloov pauv txoj hauv kev, thiab tuaj yeem ntsia thiab txhim kho hauv lub tsheb lossis ruaj khov.

Cov cuab yeej no tsim nyog rau kev ruaj ntseg qhov siab qis hauv cov xwm txheej xws li loj- kev txhawb nqa kev tshwm sim, kev saib xyuas kev nyab xeeb rau pej xeem, tiv thaiv ciam teb, nrog rau kev tiv thaiv ntawm nom tswv cov nuj nqis, thaj chaw tswj tub rog, lub zog thiab petrochemical chaw ua si, thiab tshav dav hlau. Nws tuaj yeem ua haujlwm offline ntawm ib lub tshuab, yoog raws thiab xa sai sai, thiab teb tau yooj yim, ua tau raws li qhov xav tau ntawm ntau yam xwm txheej.

2, Cov khoom sib xyaw

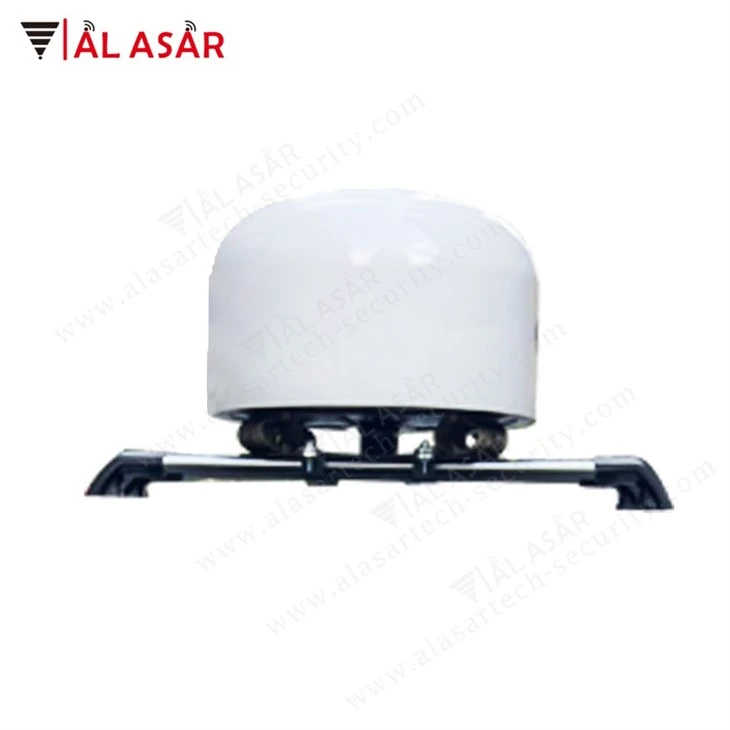

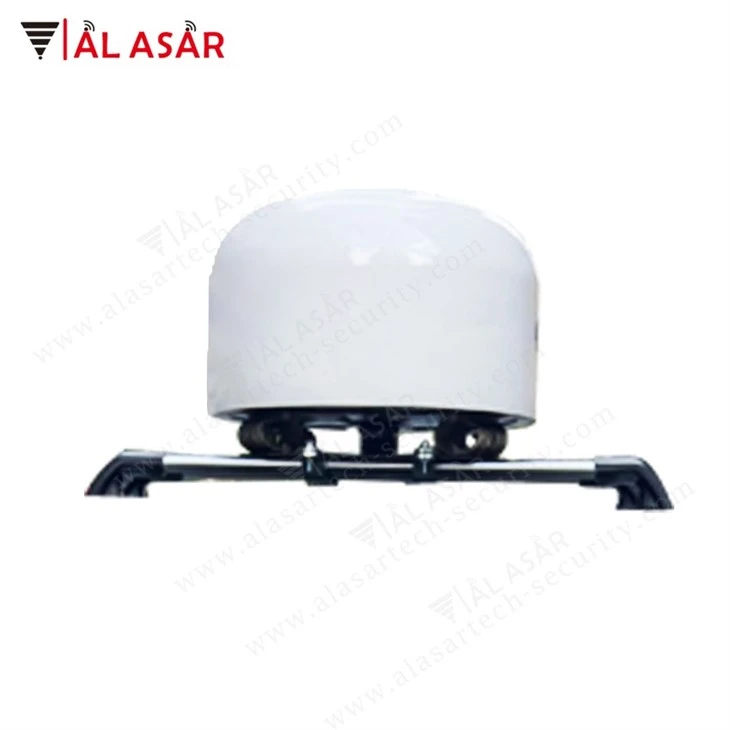

Cov khoom no feem ntau muaj tsib ntu: cov cuab yeej siv, lub thawv fais fab, bracket, hnyav- lub luag haujlwm xaim, thiab cov khoom siv, raws li qhia hauv qab no:

Table Product Hardware Composition Details

3, Muaj nuj nqi

Drone detection:Nws tuaj yeem ntes thiab txheeb xyuas lub hom, qauv, zaus, thiab lwm yam ntaub ntawv ntawm kev ua phem drones.

Drone positioning:Nws tuaj yeem nrhiav cov ntaub ntawv xov xwm ntawm DJI series ntawm drones, thiab tso saib tiag - lub sijhawm drone txoj haujlwm (longitude thiab latitude), azimuth cov ntaub ntawv, cov ntaub ntawv nyob deb (nruab deb ntawm lub drone mus rau qhov chaw ntawm cov khoom), ceev, qhov siab, thiab lwm yam.

Flying Tes Positioning:Nws tuaj yeem nrhiav cov ntaub ntawv xov xwm ntawm lub dav hlau ya ntawm DJI lub dav hlau tsis muaj neeg tsav tsheb, thiab tso saib qhov tiag - lub sijhawm txoj hauj lwm (longitude thiab latitude), cov ntaub ntawv azimuth, thiab cov ntaub ntawv nyob deb ntawm tes ya (chaw tswj chaw taws teeb) txheeb ze rau txoj haujlwm ntawm cov khoom siv.

Unique identification code lees paub:Nws tuaj yeem txheeb xyuas tus lej cim tshwj xeeb ntawm DJI series drone thiab paub meej cov ntaub ntawv qhia tshwj xeeb ntawm lub drone.

Integrated nrhiav thiab ntaus:Cov cuab yeej tuaj yeem tuaj yeem tawm tsam lub drone tom qab kuaj pom thiab txheeb xyuas nws.

Ntau lub hom phiaj trajectory taug qab:Muaj peev xwm ua tiav ntau lub hom phiaj drone positioning thiab taug qab, thaum nthuav tawm ntau lub dav hlau drone trajectories.

4, tsheb mounted drone nrhiav kom tau System Function

Cov npe dub thiab dawb:Nws tuaj yeem paub qhov txawv ntawm kev sib koom tes thiab tsis yog - drones sib koom tes, thiab lub cuab yeej yuav tsis muab lub tswb thaum kuaj pom cov drones sib koom tes. Nws tseem tuaj yeem sau npe koom nrog drones nrog kev ntseeg siab.

Intrusion tswb:Thaum kuaj pom muaj kev cuam tshuam ntawm drone, lub tswb nrov lossis pom qhov muag yuav tshwm sim.

Trajectory playback:Txhawb nqa drone davhlau trajectory playback, pab cov neeg ua haujlwm ruaj ntseg hauv kev txheeb xyuas cov ntaub ntawv keeb kwm drone ya davhlau.

Kev Tshawb Nrhiav Cov Ntaub Ntawv:Daim ntawv teev cov ntaub ntawv tshawb nrhiav tuaj yeem khaws cov ntaub ntawv tshawb pom keeb kwm, suav nrog cov ntaub ntawv ntau yam xws li drone serial tooj, qauv, zaus, thiab lwm yam.

Cov ntaub ntawv thiab cov ntaub ntawv visualization tsom xam:Txhawb UAV nrhiav pom thiab ya davhlau cov ntaub ntawv txheeb xyuas, uas tuaj yeem nthuav tawm los ntawm kev pom kev pom xws li daim duab thermal thiab kab ntawv;

Electronic map:Txhawb kev hloov pauv hauv daim ntawv qhia hluav taws xob, suav nrog Gao de, Bing, Baidu, thiab lwm yam.

5, Khoom nta

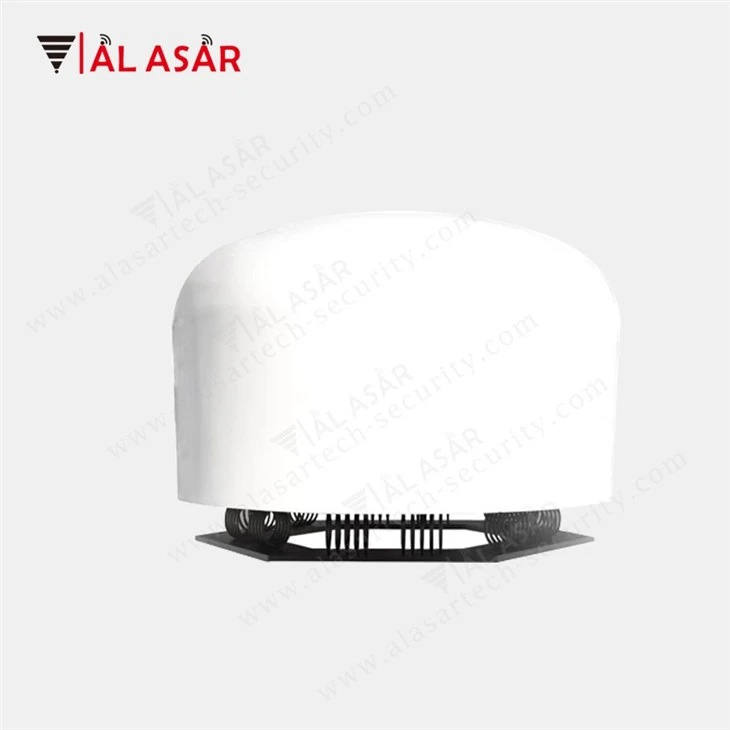

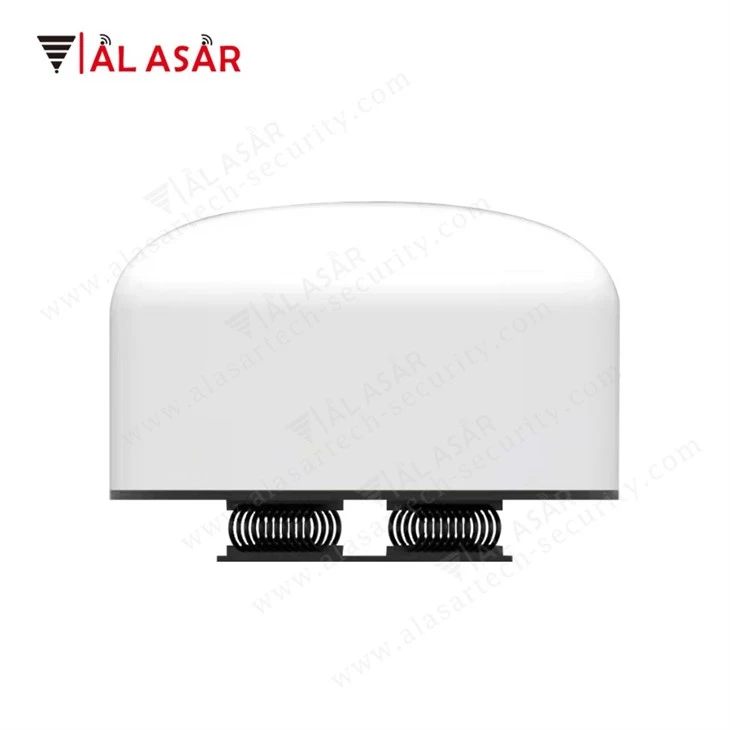

Integrated tsim:Tag nrho cov qauv ua haujlwm ntawm cov khoom siv tau muab tso rau hauv kev tiv thaiv npog, uas siv cov qauv cua tsis tshua muaj zog los tswj kev ruaj ntseg thiab kev nyab xeeb ntawm lub tsheb hauv siab - nrawm nrawm;

Mobile ua haujlwm:Cov cuab yeej muaj peev xwm ntes thiab tua cov drones thaum lub sij hawm siab - txav ceev;

Tag nrho cov qauv kuaj pom:Lub kaw lus tuaj yeem txheeb xyuas thiab txheeb xyuas cov npe ntawm cov drones xws li DJI, AUTEL, Dahua, YUNEEC, nrog rau feem ntau ntawm cov qauv ntawm kev ua lag luam xws li tus kheej - ua cov cav tov thiab WiFi tshuab;

Passive detection:Cov cuab yeej tsis tso tawm cov teeb liab electromagnetic, tsis muaj electromagnetic ib puag ncig muaj kuab paug, thiab yog ib puag ncig zoo;

Peb tag nrho - nyob ib ncig ntawm kev npaj:Cov cuab yeej ua haujlwm tsis tu ncua nruab hnub thiab hmo ntuj rau 7 * 24 teev, 24/7 (tsim nyog rau cov cheeb tsam electromagnetic complex thiab huab cua hnyav), thiab muab kev qhia dav (360℃tshawb pom ntawm drone intrusion) kev ruaj ntseg hauv cheeb tsam tseem ceeb;

Ntau -unit network:Cov khoom siv tuaj yeem txuas nrog lub backend tswj platform los ntawm kev sib txuas lus, thiab ntau -unit network ua tau raws li qhov xav tau ntawm thaj chaw loj.

6, Khoom Index Parameters

6.1 Performance Index

Product Performance Indicators - Kev Tshawb Pom Pom Kev

Product Performance Indicators - Cov Lus Teb
