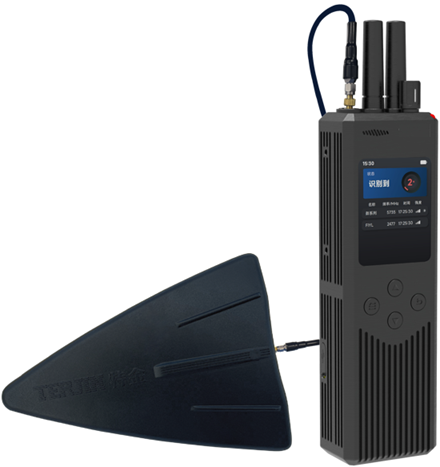

Handheld Drone Detector AAT-HD-5T yog ib lub cuab yeej siv rau kev tshawb nrhiav, kev txheeb xyuas thiab kev taw qhia ntawm cov drones. Nws txheeb xyuas drone ya davhlau tswj thiab cov duab kis tau tus mob raws li spectrum sensing thiab artificial txawj ntse technologies. Nws cov yam ntxwv muaj xws li: nrhiav kev taw qhia rau Drones; nrhiav kom tau cov drones nrog ntau zaus bands thiab ntau hom; ntev nrhiav tau deb thiab tsawg lub tswb tsis muaj tseeb; loj xim screen zaub nrog nplua nuj cov ntsiab lus; me me, lub teeb yuag, tes- tuav thiab Nws tuaj yeem koom tes nrog cov phom tiv thaiv kev cuam tshuam, thiab tsim nyog rau cov haujlwm ruaj ntseg hauv cov xwm txheej loj, chaw ua si, ciam teb thiab tiv thaiv ntug hiav txwv thiab lwm qhov chaw.

Khoom Feature

Handheld Drone Detector yog Passive detection, tsis muaj teeb liab emission, tsis cuam tshuam rau peripheral, ib puag ncig tus phooj ywg;

Portable heev, ua haujlwm ib leeg lossis ob leeg nrog rab phom tua drone;

Kav hlau txais xov ntawm ntau zaus bands tuaj yeem teeb tsa raws li qhov yuav tsum tau ua, thiab lub kav hlau txais xov interface txais ib qho qauv, uas yooj yim rau disassemble thiab hloov;

Hom -C them interface, tuaj yeem siv cov khoom siv hauv xov tooj hauv xov tooj;

Tso pov thawj, ua haujlwm zoo nyob rau hauv huab cua huab cua;

Directional nrhiav muaj peev xwm nrog cov kav hlau txais xov directional.

product-800-800

Muaj nuj nqi

Handheld Drone Detector yog tiag tiag- lub sijhawm tso saib ntawm cov ncauj lus kom ntxaws drone xws li ua, qauv, S / N, zaus, qhov chaw (longitude, latitude, qhov siab) thiab lwm yam;

Handheld Drone Detector Txhawb kev hloov kho ntawm kev tshawb pom rhiab heev hauv plaub theem;

Handheld Drone Detector Txhawb ntau daim ntawv ceeb toom xws li lub teeb, suab thiab lub suab thiab lub teeb, thiab qhov ceev ntawm lub tswb nrov thiab lub suab nrov zaus ntawm lub teeb yog adjustable;

Kev taw qhia nrhiav muaj peev xwm tom qab hloov mus rau lub kav hlau txais xov directional;

Hloov tshiab online ntawm drone tsev qiv ntawv;

Tsawg roj teeb lub tswb;

Ntau hom lus xaiv;

Pib dua lub cuab yeej kom tawm - ntawm - lub xeev lub xeev;

Cia thiab saib cov ntaub ntawv tshawb pom keeb kwm;

Saib ntawm lub tsev qiv ntawv drone, suav nrog drone tsim, qauv thiab zaus;

Lub teeb liab lub zog tso saib, lub cuab yeej tuaj yeem tso saib lub teeb liab lub zog ntawm qhov kuaj pom drone;

Tshawb pom cov drones uas tuaj yeem hu rau kev taw qhia - nrhiav haujlwm yuav raug cim;

Thaum lub cuab yeej nkag mus rau qhov kev taw qhia nrhiav hom, lub teeb liab lub zog ntawm lub drone kuaj pom yuav tshwm sim, suav nrog lub zog siab tshaj plaws, lub zog tam sim thiab lub zog nruab nrab.

Product Specificaiton

Kev ua tau zoo

Omni- hom kev taw qhia kom pom

Txoj kev nrhiav hom

#	Yam khoom	Technical Parameters
1	Kev ua haujlwm hom	Passive nrhiav pom
2	Drone qauv txhawb	DJI series drones, FPVs, Xiaomi, Yuneec, Hubsan, Hubson, Powervision, Tello drones thiab lwm yam.
3	Ua hauj lwm zaus	2.4GHz, 5.8GHz
4	Kev kuaj pom ntau	0-800 meters (lub nroog ib puag ncig, sim nrog DJI AIR2 raws li lub hom phiaj)
5	Azimuth	0℃~ 360℃(omnidirectional kav hlau txais xov)
6	Lub sijhawm lees paub	Tsawg dua los yog sib npaug li 2s
7	False tswb tus nqi	Tsawg dua los yog sib npaug rau ib zaug / hnub (Nyob hauv ib puag ncig anechoic chamber)
8	Swarm detection	Ntau tshaj los yog sib npaug rau 10 concurrent drones

1	Kev ua haujlwm hom	Directional passive nrhiav pom
2	Yam khoom	Qee cov drones xws li DJI (Phantom series thiab Yu series), Daotong thiab Hubson
3	Ua hauj lwm zaus	2.4GHz thiab 5.8GHz
4	Kev ntsuas deb	100-2000 meters (ib puag ncig hauv nroog, sim nrog DJI AIR2 raws li lub hom phiaj)
5	Tshawb nrhiav azimuth	Tsawg dua los yog sib npaug rau ± 17.5℃(Lub hom phiaj 1km deb nrog zaus kaw)

Mechanical Parameters

1	qhov loj	L * W * H: 235mm * 66mm * 43mm (tus tswv tsev)
2	hnyav	Tsawg dua los yog sib npaug li 800g (Antenna tsis suav nrog)
3	Roj teeb lub neej	Ntau tshaj lossis sib npaug li 6 teev
4	Lub sijhawm them nyiaj	Tsawg dua lossis sib npaug li 3 teev (siv tus thawj charger)
5	Kev them nyiaj yug interface	Hom -C
