Khoom Taw Qhia:

Lub Pulse Doppler X-band radar drone nrhiav pom yog feem ntau yog tsim los ntawm radar pem hauv ntej siab- ceev turntable thiab lub hwj chim faib tswj lub thawv. Nws yog siv rau kev tshawb nrhiav qhov qis- qhov siab, qis- lub hom phiaj qeeb thiab qeeb thiab txav lub hom phiaj ntawm av thiab dej hiav txwv. Nws tuaj yeem siv rau kev ceeb toom thiab lub hom phiaj qhia, thiab tuaj yeem muab cov ntaub ntawv qhia txog lub hom phiaj hauv lub sijhawm thiab raug.

X-band Pulse Doppler Radar drone nrhiav tau tuaj yeem saib xyuas lub hom phiaj qis, qeeb thiab me me, ntes tau qhov tseeb ntawm lub hom phiaj ntawm lub sijhawm, thiab ua tiav 360℃tag nrho ntawm kev saib xyuas cheeb tsam yam tsis muaj qhov kawg. Cov cuab yeej siv radar nrhiav tshuab nrog kev ywj pheej cov cuab yeej cuab tam, uas tsim nyog rau tag nrho - huab cua, tag nrho - hnub, complex electromagnetic ib puag ncig thiab thaj chaw, ua kom ruaj khov thiab ua haujlwm ntawm cov cuab yeej 7 * 24 teev.

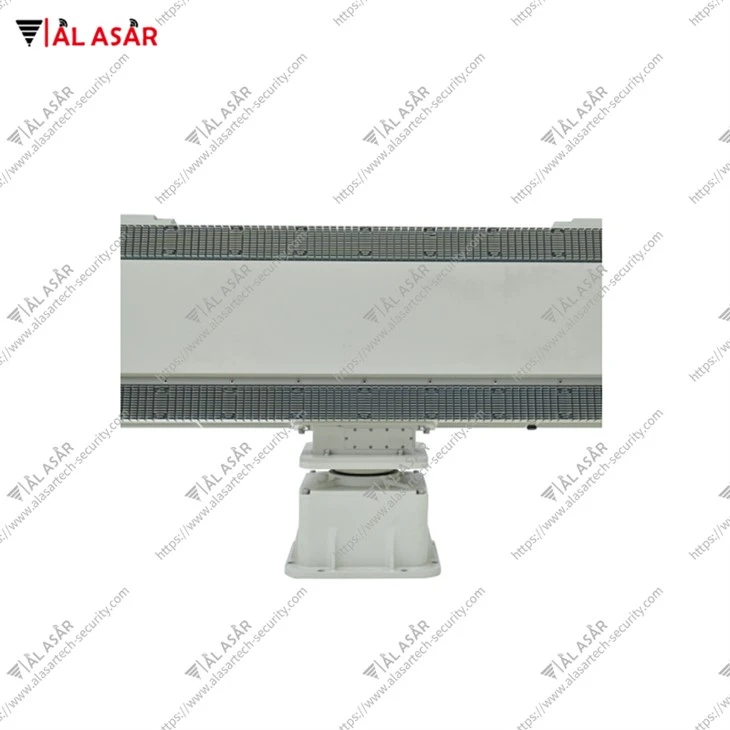

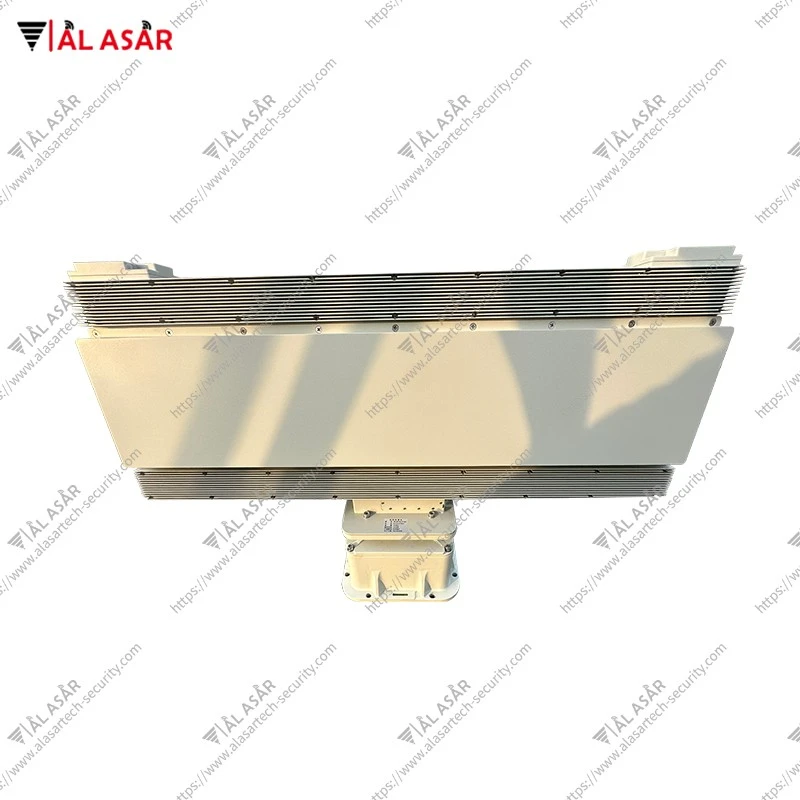

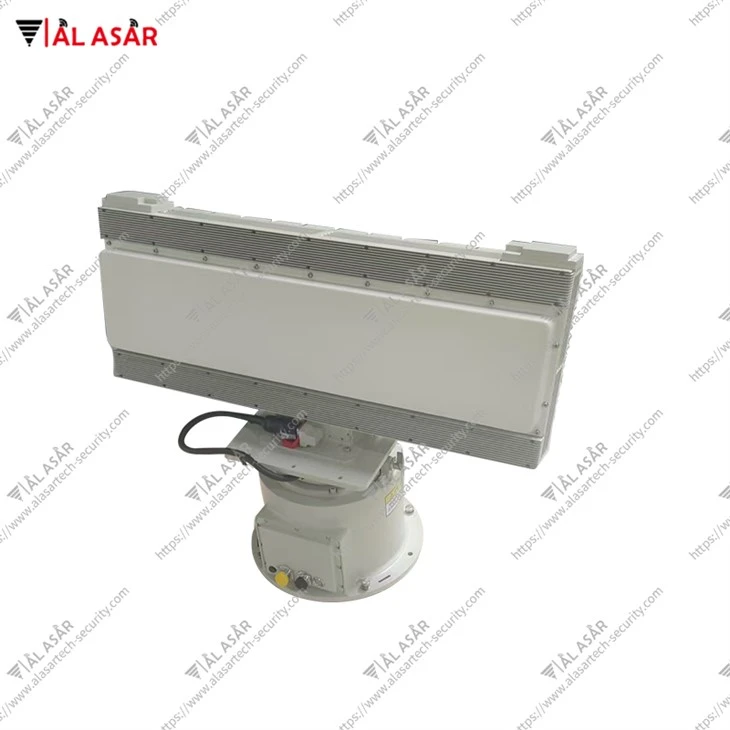

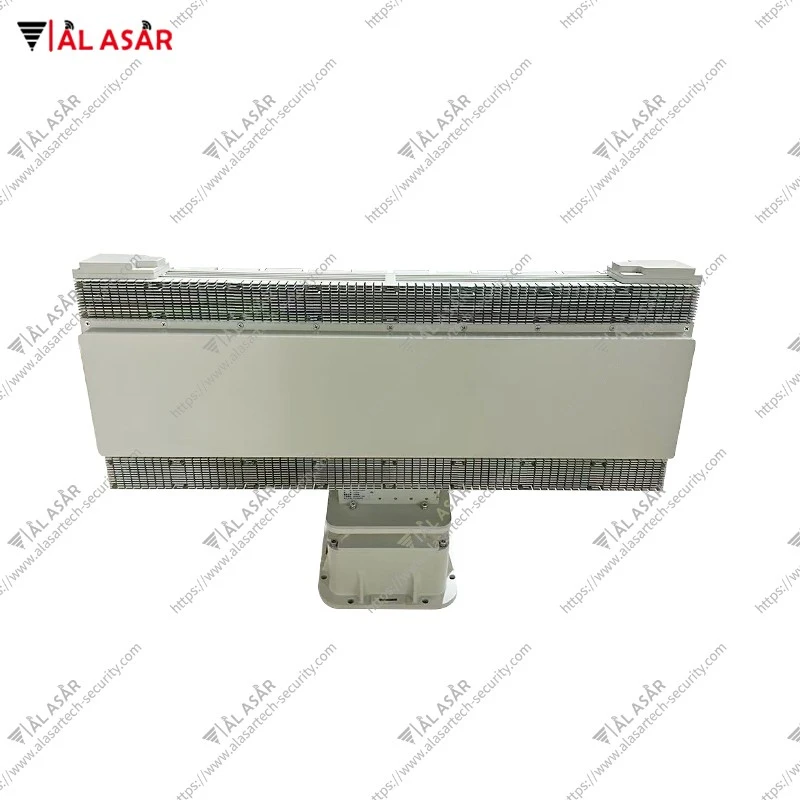

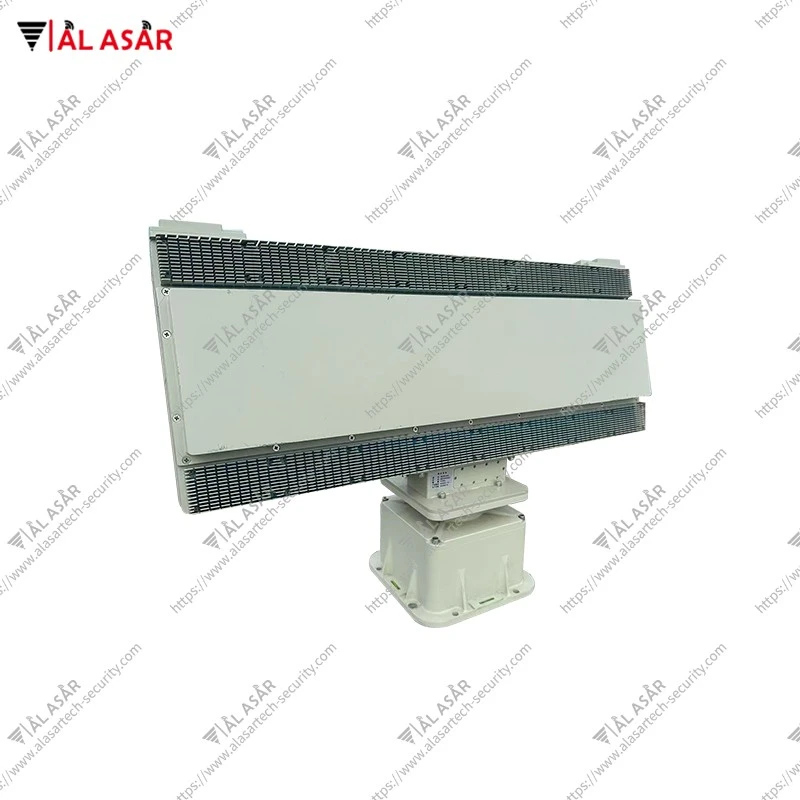

AAT / SR226-X Pulse Doppler Radar feem ntau yog tsim los ntawm radar array, lub tshuab tig tau thiab lub zog hloov pauv. Nws yog siv rau kev tshawb nrhiav, ceeb toom thiab lub hom phiaj qhia ntawm micro / me me pej xeem drones hauv thaj chaw tseem ceeb xws li ciam teb, ib puag ncig, tshav dav hlau, cov tub rog hauv paus, thiab lwm yam. Nws tuaj yeem muab lub hom phiaj kev taw qhia, qhov deb, qhov siab thiab ceev thiab lwm yam ntaub ntawv taug qab.

Nta:

◎ Siab tiag -lub sij hawm thiab siab precision: Nws tuaj yeem tswj tau siab - qhov tseeb taug qab ntev - lub hom phiaj nrhiav kom deb, muab kev txiav txim zoo rau cov neeg tiv thaiv ciam teb

◎ Kev hloov pauv ib puag ncig muaj zog: Nws muaj peev xwm ua haujlwm txhua hnub thiab txhua hnub, thiab tuaj yeem hloov mus rau qhov chaw hnyav xws li hmo ntuj, nag, daus, huab cua, huab cua, thiab plua plav

◎ Kev hloov pauv siab: Nws tuaj yeem ntes cov hom phiaj ntawm qhov deb thiab yooj yim teeb tsa

◎ DBF thev naus laus zis: DBF thev naus laus zis xa ntau-beam thev naus laus zis los txhim kho kev tiv thaiv- muaj peev xwm cuam tshuam

◎ Phased array system: Nws siv cov txheej txheem ua haujlwm theem siab tshaj plaws los txhim kho radar nrhiav kom pom cov nyhuv thiab tuaj yeem tso tawm lub hom phiaj peb -cov ntaub ntawv sib koom ua ke

◎ Kev ua haujlwm siab: Los ntawm kev polishing tas li ntawm cov khoom, thaum ua kom pom tseeb, nws ua tiav kev sib xyaw ua ke zoo tshaj plaws ntawm cov khoom lag luam, kev siv tau, thiab kev lag luam.

Khoom Parameter:

Ua haujlwm system	Phased array system (azimuth scanning + elevation scanning) / mem tes Doppler
Ua haujlwm band	X band (9.4-9.6GHz)
Kev ntsuas deb	100m-5.0km (drone) 100m-8.0km (Cov neeg caij tsheb) 100m-10.0km (Tsheb)
Azimuth kev pab cuam	360 degree
Lub kaum sab xis ntawm qhov chaw siab tshaj	40 degree
Kev ntsuas ceev	0.5m/s-75m/s
Azimuth raug	Tsawg dua lossis sib npaug li 0.5 degree
pitch kaum sab xis	Tsawg dua lossis sib npaug li 1.0 degree
Lub kaum sab xis	Tsawg dua los yog sib npaug li 10m
Cov ntaub ntawv tus nqi	Ntau tshaj lossis sib npaug rau 0.2Hz
Cov ntaub ntawv interface	RJ45 / 100M Ethernet
Lub zog nkag	Tsawg dua los yog sib npaug rau 350W (siv) AC200-AC240 (input)
Ua haujlwm kub	-40℃-+55 degree
Qhov hnyav	Tsawg dua lossis sib npaug li 32kg (tag nrho cov khoom siv)
