Kev tsim kho ntawm lub tshav dav hlau drone nrhiav kom pom thiab ntsuas qhov system.
In recent years, with the rapid development of drones, the world's major airports are facing the increasing safety problems of drones. For airports, it is even more urgent to deploy an anti-drone system early warning system. The research and development and deployment of anti-drone technology enables the airport to have low-cost anti-drone technical means, thereby reducing the loss caused by drone intrusion to the airport.
Potential risks at airports: Regardless of whether civilian aircraft or military aircraft, their airport take-off and landing process requires a certain range of "clearance" to protect, so as to ensure the safety of flight. However, in recent years, a large number of drones (UAS) can break into the "clearance" management area of the airport at any time without restraint, causing aviation unsafe incidents and causing huge losses to the aviation industry.
(1) Kev hem rau kev nyab xeeb ntawm lub dav hlau tawm thiab tsaws
(2) ncua sij hawm lub dav hlau ib txwm coj- tawm thiab tsaws
(3) Cov nqi khiav lag luam nce ntxiv
(4) Qhia tawm ntawm kev ceev ntiag tug thiab tsis pub lwm tus paub
Multi-rotor UAV detection and countermeasure system
Multi-rotor UAV ceeb toom ntxov thiab tiv thaiv kab mob yog UAV ceeb toom ntxov thiab tiv thaiv kab mob kho rau lub tshav dav hlau. Cov txheej txheem tshwj xeeb yuav tsum tau teeb tsa raws li qhov xav tau tiag tiag ntawm lub tshav dav hlau. Nws feem ntau suav nrog plaub ntu: kev tshawb nrhiav thiab kev txheeb xyuas cov subsystem, photoelectric nrhiav subsystem, xov tooj cua countermeasure subsystem thiab net capture countermeasure subsystem.

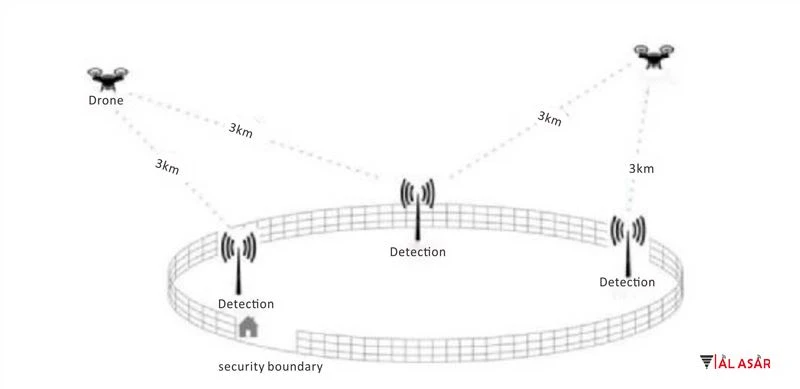

UAV detection and identification subsystem
Nws feem ntau suav nrog: multi-sensor fusion pem hauv ntej-kawg cov khoom tau txais cov teeb liab, rov qab-kawg tswj cov khoom ceeb toom ntxov, thiab UAV feature database. Lub multi-sensor fusion pem hauv ntej-kawg teeb liab tau txais cov cuab yeej sib txuas ua ke lub suab ntes, Wifi spectrum detectors, dav - lub koob yees duab lub kaum ntse ntse, qis- lub koob yees duab teeb, thiab lwm yam, kom paub txog fusion detection ntawm ntau yam sensors, thiab kom luam theej duab, ntes thiab ceeb toom intruding multi-rotor UAVs. ; Rov qab-kawg tswj cov cuab yeej ceeb toom ntxov, txuas ntau yam pem hauv ntej- kawg cov cuab yeej tshawb pom los ntawm lub khoos phis tawj network, kev tswj hwm thaj chaw tiv thaiv, tom qab kuaj pom UAV invading, lub kaw lus ua rau lub tswb, thiab qhia txog thaj tsam tswb nyob rau hauv daim ntawv qhia electronic; UAV feature database, siv Tus qauv UAV xeem davhlau txoj kev txheeb xyuas lub hom phiaj, thiab txhim kho qhov tseeb ntawm kev ceeb toom ntxov los ntawm kev ntxiv lub hom phiaj hauv cov ntaub ntawv tshwj xeeb.

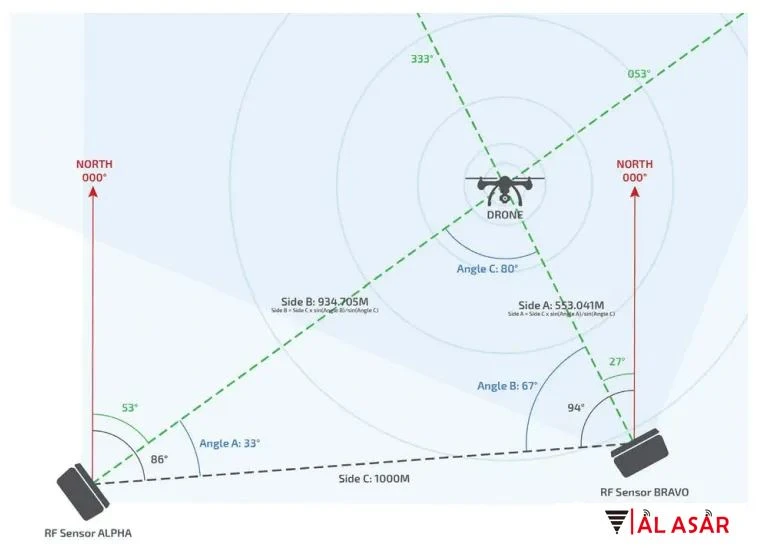

Photoelectric nrhiav subsystem
Nrog rau cov khoom siv kho qhov muag thiab infrared taug qab, tom qab tau txais lub tswb, cov cuab yeej siv hluav taws xob taug qab tuaj yeem qhib tau kom taug qab tsis tu ncua thiab nrhiav cov drone intruding nyob rau hauv kev tiv thaiv ntau yam, thiab txiav txim siab peb - qhov chaw sib koom ua ke ntawm cov intruding drone hauv kev tiv thaiv. ntau
Photoelectric nrhiav subsystem
Nrog rau cov khoom siv kho qhov muag thiab infrared taug qab, tom qab tau txais lub tswb, cov cuab yeej siv hluav taws xob taug qab tuaj yeem qhib tau kom taug qab tsis tu ncua thiab nrhiav cov drone intruding nyob rau hauv kev tiv thaiv ntau yam, thiab txiav txim siab peb - qhov chaw sib koom ua ke ntawm cov intruding drone hauv kev tiv thaiv. ntau.

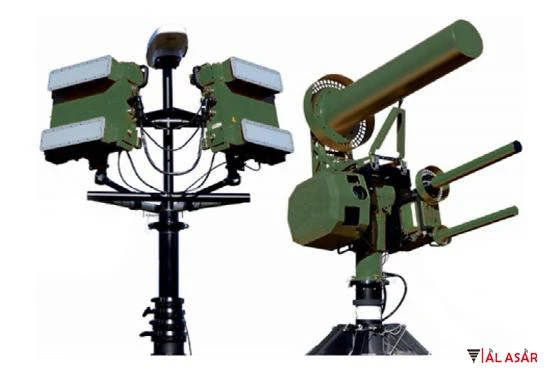

Xov tooj cua Countermeasures Subsystem
Feem ntau suav nrog cov khoom siv hluav taws xob cuam tshuam. Cov khoom siv hluav taws xob cuam tshuam cuam tshuam lossis tswj cov drones los ntawm cov hluav taws xob hluav taws xob muaj zog.
Lub net capture countermeasure system muaj xws li
Counter drones thiab ntes nets. Hauv qee qhov xwm txheej tshwj xeeb, thaum nws tsis tuaj yeem ua lub xov tooj cua cuam tshuam ntawm lub drone invading, lub txee drone yuav tawm mus thiab ua raws li cov lus qhia ntawm lub luag haujlwm thauj khoom los taug qab lub drone intruding, thiab tso lub ntes ntes tom qab nkag mus rau ntau yam. , siv lub net ntes kom txwv lub invading drone thiab yuam kom nws poob.
Kev npaj xa tawm
Cov phiaj xwm kev xa tawm tshav dav hlau feem ntau suav nrog: cov phiaj xwm xa tawm ruaj khov thiab cov phiaj xwm xa xov tooj ntawm tes.
Txoj kev npaj xa mus tas li yog ib lub sijhawm ntev - npaj xa mus, uas tsim nyog rau qhov xwm txheej uas lub tshav dav hlau tiv thaiv thiab kev tswj hwm tseem tsis hloov pauv mus ntev. Feem ntau nyob rau hauv lub tshav dav hlau npaj, lub Scope ntawm nws clearance tiv thaiv yog txiav txim, yog li tshwj tsis yog rau lub tshav dav hlau ua nyob rau hauv cov theem, feem ntau yog tsim nyog rau taag deployment schemes. Cov txheej txheem xa mus tas li suav nrog ib qho - cov phiaj xwm xa tawm thiab cov phiaj xwm xa tawm online.
AL ASAR TECH Ib qho -cov ntsiab lus xa tawm kev daws teeb meem txhais tau hais tias cov txheej txheem xa tawm tsuas yog suav nrog cov txheej txheem tshawb nrhiav, taug qab thiab ntsuas ntsuas, uas tsim nyog rau cov xwm txheej uas qhov kev tiv thaiv me me thiab qhov cuam tshuam tsis zoo yuav tsis siab. Tau kawg, nyob rau theem pib ntawm tshav dav hlau tiv thaiv -UAV xa tawm, ib qho - cov phiaj xwm xa tawm kuj tuaj yeem raug xaiv rau kev sim xa tawm, thiab thaum paub tab, nws yuav raug hloov mus rau kev xa tawm online.
Kev xa tawm hauv online txhais tau hais tias cov txheej txheem xa tawm suav nrog ntau tshaj ib txheej ntawm kev tshawb nrhiav, taug qab thiab ntsuas ntsuas, uas tsim nyog rau cov xwm txheej uas qhov kev tiv thaiv dav dav thiab qhov cuam tshuam cuam tshuam yog siab. Raws li tam sim no cov txheej txheem tseem ceeb ntawm cov kab ke thiab cov kev cai rau kev tiv thaiv kev taw qhia ntawm lub tshav dav hlau tshem tawm, cov txheej txheem xa tawm hauv online yuav tsum tau siv yog tias kev tiv thaiv dav dav hauv tshav dav hlau tshem tawm ntau yam yuav tsum tau ua tiav.
Cov phiaj xwm xa xov tooj ntawm tes yog siv rau kev xa tawm thaum muaj xwm txheej ceev, lossis thaum lub teeb tsa tau nce ib ntus raws li cov neeg siv xav tau. Txoj kev tshawb nrhiav, taug qab thiab ntsuas qhov ntsuas hauv lub tswv yim txawb yog lub tsheb -mounted, uas tuaj yeem taug kev ntawm txoj kev pav zoo tib yam thiab muaj qee yam tawm - txoj kev muaj peev xwm. . Lub hauv paus - lub tsheb tuaj yeem paub txog kev tshawb nrhiav, taug qab thiab tiv thaiv kev tiv thaiv thaum tsav tsheb, uas yog qhov zoo rau cov lus teb ceev ceev thaum muaj xwm txheej ceev.
Ib qho -point mobile deployment scheme zoo ib yam li ib qho -point fixed deployment scheme, thiab feem ntau yog siv txoj hauv kev xa tawm hauv nruab nrab, uas yog, kev tiv thaiv kab ke tau teeb tsa hauv nruab nrab ntawm thaj chaw tiv thaiv hauv kev txiav txim kom ua tiav qhov siab tshaj plaws kev tiv thaiv ntau yam. Qhov chaw xa khoom yooj yim tshaj plaws nyob ze rau qhov chaw nruab nrab feem ntau yog xaiv rau kev nkag tau yooj yim thiab cuam tshuam.
Qhov kev daws teeb meem hauv online mobile xa tawm yog xa tawm ntau lub tsheb thauj khoom tib lub sijhawm, uas tuaj yeem npog ntau qhov kev tiv thaiv loj dua.
