Siab zog Jammer

Khoom Taw Qhia

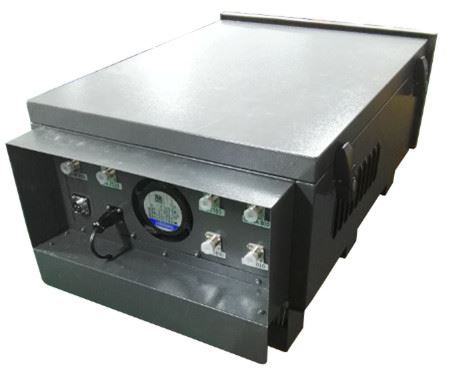

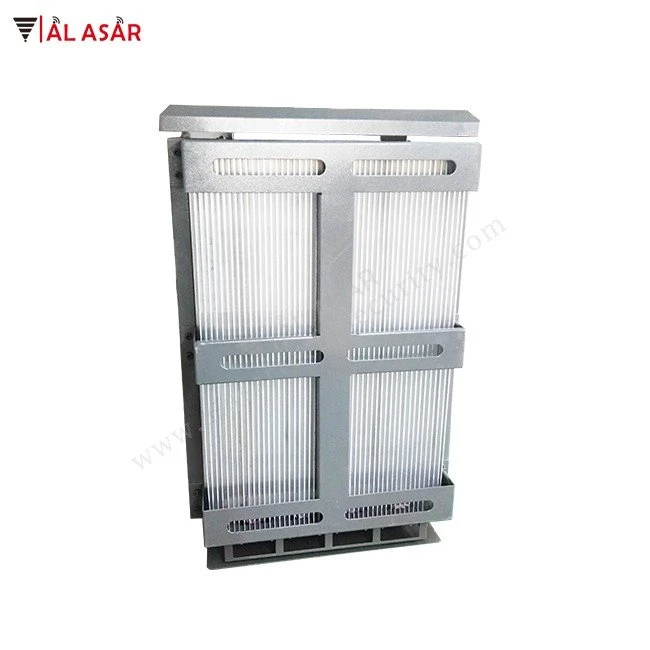

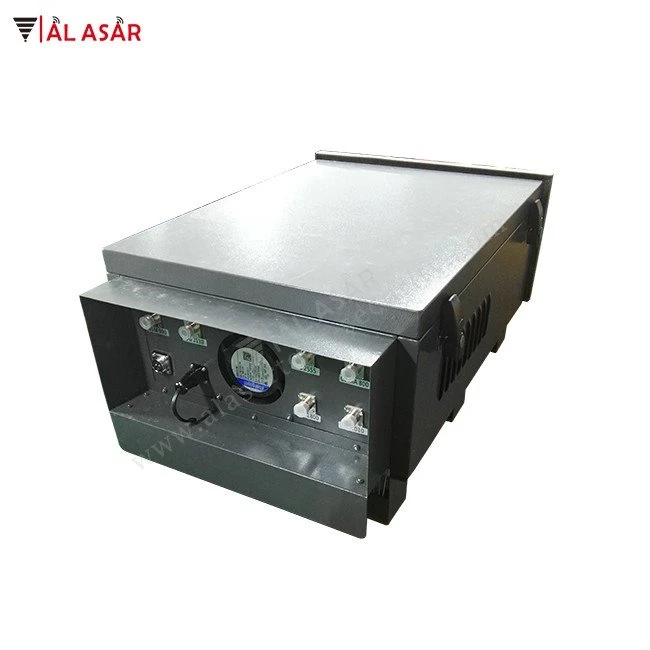

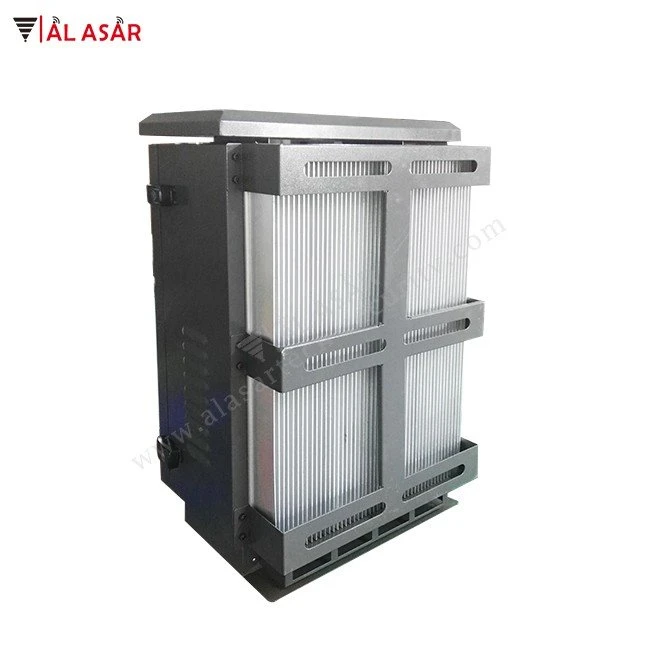

Lub siab - lub zog hluav taws xob xov tooj ntawm tes teeb liab jamming system zoo tiv thaiv tag nrho 2G / 3G / 4G / 5G xov tooj ntawm tes teeb liab hauv tsev thiab txawv teb chaws. Txais kev tsim qauv tsim qauv tsim qauv tsim, muaj kev ua haujlwm siab - ua haujlwm tau zoo thiab lub ntsej muag ua kom txias thiab ua kom txias txias ua los ntawm cov khoom siv hluav taws xob loj loj nrog cov cua kub dissipation kev ua tau zoo, ntau tus kiv cua thiab lub chassis, thiab los nag tshwj xeeb {{6} }cov ntaub ntawv pov thawj tsim los xyuas kom meej lub sijhawm ntev - kev ua haujlwm ruaj khov ntawm cov cuab yeej txawm tias huab cua hnyav. Nruab nrog lub siab siab siab - tau txais kev taw qhia phaj kav hlau txais xov, nrog lub zog xa hluav taws xob loj, kev tiv thaiv dav dav, kev teeb tsa yooj yim, siv thiab tswj, thiab tuaj yeem ua haujlwm tsis tu ncua yam tsis siv lub tshuab tau ntau xyoo.

Khoom Feature

Lub xov tooj ntawm tes jammer tiv thaiv- cuam tshuam, ua haujlwm siab, Siab raug, siab - kev ntseeg tau, hloov tau, teeb liab ua tshuab.

Siv ultrahigh zaus boardband jamming technology.

Lub hwj chim zoo (Channel power) siab, thiab cuam tshuam lub vojvoog loj

Siv tau cov subsection, tsuas yog cuam tshuam downlink, tsis ua cuam tshuam rau lub hauv paus chaw nres tsheb.

Ntshuam tivthaiv, qeeb pib Circuit Court tsim thiab tuaj yeem zam kev hloov kho tshuab tsim qhov tshwm sim, qib siab ntawm kev sib koom ua ke thiab ua haujlwm ruaj khov

Zoo meej rau tus kheej- kev tiv thaiv muaj nuj nqi, thaum cov khoom siv overheating, tso zis dhau lub hwj chim, VSWR ect ceeb toom txhaum cai, lub jammer yuav pib tig -tawm uas muaj txhaum module, kom tsis txhob muaj jammer puas.

RF module tswb hom: Kub tswb, Tshaj lub hwj chim tswb, sawv yoj tswb.

IP Chaw Saib Xyuas Chaw Taws Teeb, ua haujlwm yooj yim ntawm lub sijhawm tawm tswv yim ntaus ntawv.

TCP / IP network raws tu qauv tswj chaw taws teeb, tus qauv RJ45 network interface, txhua lub cuab yeej muaj qhov chaw nyob IP cais

Thaum lub jammer muaj qhov xwm txheej txawv txav, lub kaw lus cia li ceeb toom, thiab tsim cov cav, nug yuam kev thiab lub tswb tsis raug.

Authority management: "administrator" "general users" "Browsed user"

Los ntawm software chaw taws teeb tswj kev tswj hwm kev tswj hwm, tuaj yeem ua tiav taw tes rau taw tes hloov cuab yeej teeb tsa module fais fab theem, hloov chaw taws teeb. Nyob rau tib lub sij hawm lub cuab yeej qhib lub chassis nrog lub teeb qhia

Platfrom lus: Suav, Lus Askiv thiab Spainish ua haujlwm interface, tuaj yeem nthuav tawm lwm hom lus pob;

Product Specificaiton

Kev tiv thaiv zoo CDMA, GSM, SCDMA, DCS1800MHz, PCS1900MHz, PHS, GPS, 2.4GWIFI, 5.8G wifi, 3G WCDMA, 4G LTE, 5G VHF, UHF, LOJACK ect, wireless teeb liab. (yeem)

Siv tau jamming nrug txoj kab uas hla: 120-500M, (nyob ntawm ib puag ncig lub teeb liab lub zog), Qhov zoo dua xaiv cov kav hlau txais xov, shileding zoo dua.

Lub hwj chim: AC 220V

Kev siv hluav taws xob: 1000W

Ua haujlwm: 247 teev ua haujlwm tsis tu ncua.

Chaw taws teeb tswj: RJ 45

Kav hlau txais xov: High Gain Directional Panel Antennas lossis Omni Antennas

Operating Temp: -25ºC - plus 60ºC

Humidity: 30% -95 feem pua

Net Nyhav: 65kgs;

Qhov Loj: 730 (L) 450 (W) 320 (H) mm

Ntim qhov loj: 830 (L) 565 (W) 435 (H) mm

Accessoris: Fais fab cable, RF Cable kav hlau txais xov, RJ connector, phab ntsa -mounted expansion bolt.

Daim ntawv thov:

Cov tsev loj cuj, Cov Tsev Teev Npe Sau Npe, Cov Tsev txhab nyiaj, Cov Chav Tsev cog lus, cov tsev teev ntuj, cov chav kawm, cov chaw sim, Kev Pabcuam Kev Ruaj Ntseg, Cov Tub Rog Tub Rog, Cov Kev Pabcuam, Cov Xov Xwm Sib Tham, Cov Tsev Qiv Ntawv, Tsev khaws puav pheej, Tsev Hais Plaub, Kev Tiv Thaiv Ciam Teb thiab Tshuaj Tiv Thaiv, Kev lis kev cai, thiab lwm yam.

Txhua qhov chaw rhiab heev uas tsis tso cai rau cov teeb liab wireless.

Daim ntawv ceeb toom:tsev loj cuj jammer, chaw ua haujlwm teeb liab jammer, Kev ruaj ntseg jammer, sab hauv tsev jammer, sab nraum zoov jammer, Tub rog jammer, sablaj chav jammer, cctv jammer, cctv jammer. churche jammer, teeb liab jammer, xov tooj ntawm tes jammer, 5G xov tooj ntawm tes jammers

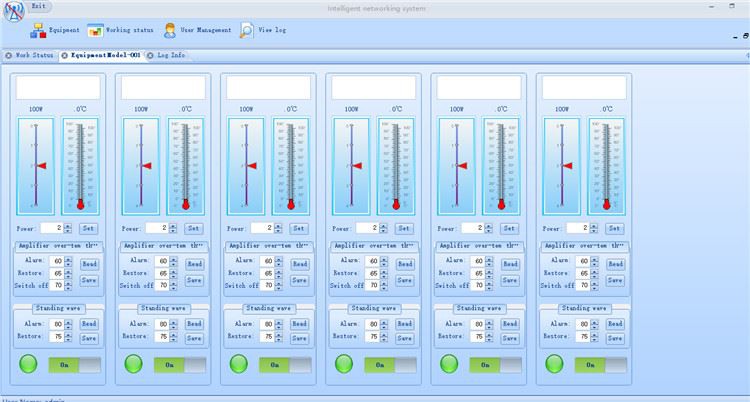

Jammer Saib Xyuas Software Platform Taw Qhia:

The Jammer Monitoring Software Platform allows customers to keep a query or control all Jammers accessed to the Internet, and all the alarm information jammers real-time feedback to the customer, so that customers can stay at home to have all information of jammers running, and adjust the control parameters of the Jammers to suit the operating environment of the installed area, greatly reduce the customer's maintenance workload.

The platform enables real-time display of all Jammers' output power, operating temperature, alarm information (including over-temperature alarm, under-power alarms, VSWR alarms, Door open alarms, etc.), and all information is specific to each Channel, real-effective, convenient and quick.

Lub platform no tseem tso cai rau koj hloov pauv nplooj ntawv nkag mus yees duab thiab xa koj lub logo ntawm koj tus kheej.
