KhoomTaw qhia:
Qhov tseeb ABS plhaub portable 18 bands nrog 16 antennas tag nrho-hauv-ib tsim wireless teeb liab Jammer, jamming txhua hom hauv xov tooj, ntsiav tshuaj, Smart Phones, iPhones, Win xov tooj thiab lwm yam uas siv 2G, 3G, 4G 5G, thiab CDMA 450Mhz , Thaiv LOJACK GPS, Wi-Fi 5G, Walkie-Talkie UHF/VHF thiab RF teeb liab xws li 315, 433, 868 thiab lwm yam. Tsis loj dua thiab nrog LCD zaub yog nrov
KhoomNta:
Qhov tseeb 18 bands portable jammer nrog 16 tus kav hlau txais xov ABS plhaub tsim (Channel 12/13,15/16 siv dual bands tsim, tshem tawm cov kev cuam tshuam ntawm ntau dhau thiab kaw cov channel), thaiv txhua lub xov tooj ntawm tes 5G 4G 3G 2G LOJACK GPS Wi -Fi RF teeb liab
18 watts siab tso zis zog, Jamming ntau yam 2 txog 20 meters (ntawm -75dBm, nyob ntawm lub teeb liab lub zog hauv cheeb tsam muab)
Cov cua txias zoo nrog 3 lub kiv cua txias sab hauv thiab lub dab dej kub loj dua, Nylon npog rau tes
Nrog DIP hloov, tuaj yeem qhib / tawm txhua lub teeb liab band yam tsis muaj kev cuam tshuam rau lwm cov bands
Nrog lub tsheb charger, 12V DC / AC fais fab mov kuj muaj
Nrog built-in roj teeb loj, tuaj yeem ua haujlwm 120 feeb, rov them dua
Roj teeb muaj peev xwm LCD zaub (muaj peev xwm feem pua, ua haujlwm Voltage / Tam sim no)
Kev pabcuam OEM:
Customized rau tshwj xeeb zaus band, Wi-Fi5G, Wireless lub koob yees duab 1.2GHz thiab lwm yam
Silkscreen OEM kev pabcuam tuaj yeem muab
Technical Specifications:
Teb Chaws Asmeskas Zaus:Tag Nrho Cov Xov Tooj Txawb Xov Tooj 5G / 4G / 3G / 2G + WiFi 2.4G /5G+ GPSL1-L5+VHF/LOJACK+RC433 315
EU: Ntau zaus:Txawb xov tooj 5G/4G/3G/2G +WiFi2.4G/5G+ GPSL1-L5 UHF/VHF/LOJACK+RC433 315
Tso zis zog: Tag nrho 18W, 1W txhua pawg nrog 2dbi nce omni kav hlau txais xov
Jam Radius:2-20meters Tseem nyob ntawm lub zog teeb liab hauv cheeb tsam
Fais fab mov: AC 110-240V rau DC12V
Txias System: High efficiency aluminium alloy radiator, Tsim-hauv 3x kiv cua txias
Lub Sijhawm Ua HaujlwmCov roj teeb ua haujlwm: 7.4V / 12000mAh Ua haujlwm txuas ntxiv: Nyob ib ncig ntawm 2.0 teev
Khoom Loj210x130x46mm (tsis muaj kav hlau txais xov)
Khoom hnyav: appr.2 0kg

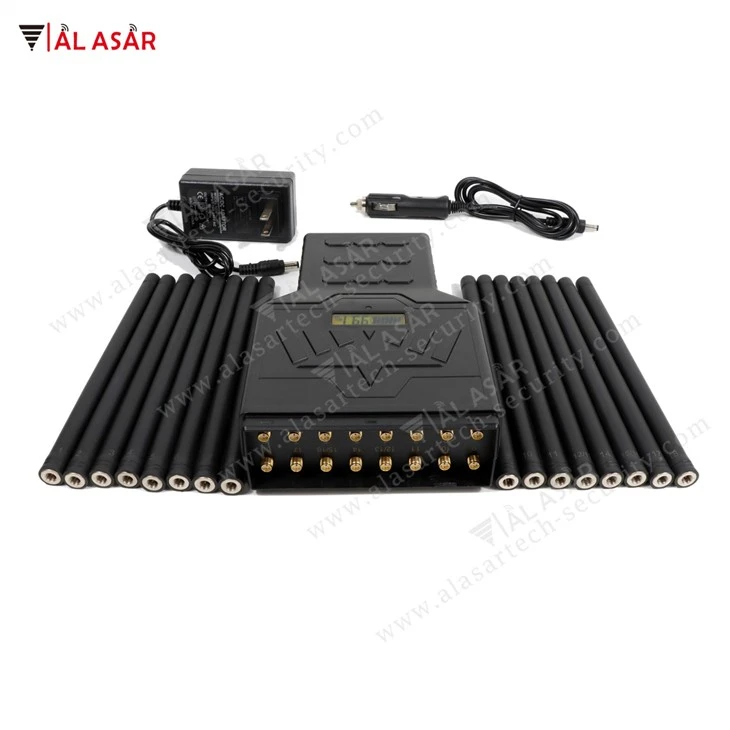

Ntim Cov Ntsiab Lus: Jammer Host x 1, AC Charger x1, omni kav hlau txais xov x16, Tsheb Charger x1,
Xim:Dub
|
Cov kev qhia tshwj xeeb tseem ceeb: US |
|||
|
Channel |
Output chaw nres nkoj |
Ntau zaus |
Nruab nrab tso zis zog |
|
CH 1 |
UHF / 5G600 |
400-470 lossis 617-685MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 2 |
4G700 |
700-803MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 3 |
5G3500 |
3400-3600MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 4 |
4G2300 |
2300-2400MHZ |
3 0± 1dBm / 1 ± 0.2W |
|
CH 5 |
WIFI 5.2G |
5100-5500MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 6 |
GPSL2L5 |
1170-1280MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 7 |
4G1700/GPSL3L4/LORA |
1710-1780 lossis 1370-1390 lossis 900-930MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 8 |
4G2600 |
2496-2690MHZ |
3 0± 1dBm / 1 ± 0.2W |
|
CH 9 |
VHF/LOJ |
135-175MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 10 |
GPSL1 |
1570-1610MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 11 |
TIAB SA RC315 |
315 MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH12 / CH 13 |
PIB 1900 |
1920-2000MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CDMA 850 |
850-894MHz |
3 0± 1dBm / 1 ± 0.2W |
|
|
CH 14 |
SIB 433 |
433 MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 15/ CH 16 |
WIFI 2.4G |
2400-2500MHz |
3 0± 1dBm / 1 ± 0.2W |
|
WIFI 5.8G |
5500-5900MHz |
3 0± 1dBm / 1 ± 0.2W |
|
|
CH 17 |
5G3700 |
3600-3900MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 18 |
3G2100 |
2110-2180MHz |
3 0± 1dBm / 1 ± 0.2W |
|
Fais fab mov: adapter 50 txog 60Hz AC (110-240V AC/12V DC) Tsheb Charger: DC12V IN Built-in roj teeb: 7.4V / 12000mAh Ua haujlwm txuas ntxiv: Nyob ib ncig ntawm 2.0 teev |
|||
|
Qhov Loj: (ntev, dav, qhov siab) 210x130x46mm (tsis muaj kav hlau txais xov) Ntev ntawm tus kav hlau txais xov: 195mm Gain: 2.0dbi |
|||
|
Packing loj: 330*250*80mm Net nyhav: 1.5kg Tag nrho qhov hnyav: 2.0kg |
|||
|
Tag nrho lub zog: 18W |
|||
|
Warranty: ib xyoos txij li hnub xa khoom |
|||
|
Cov kev qhia tshwj xeeb tseem ceeb: EU |
|||
|
Channel |
Output chaw nres nkoj |
Ntau zaus |
Nruab nrab tso zis zog |
|
CH 1 |
UHF & CDMA450 |
400-470MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 2 |
4G800 |
758-826MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 3 |
5G3500 |
3400-3600MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 4 |
4G2300 |
2300-2400MHZ |
3 0± 1dBm / 1 ± 0.2W |
|
CH 5 |
WIFI 5.2G |
5100-5500MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 6 |
GPSL2L5 |
1170-1280MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 7 |
5G1400 |
1427-1518MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 8 |
4G2600 |
2570-2690MHZ |
3 0± 1dBm / 1 ± 0.2W |
|
CH 9 |
VHF/LOJ |
135-175MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 10 |
GPSL1 |
1570-1610MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 11 |
TIAB SA RC315 |
315 MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH12 / CH13 |
DCS 1800 |
1805-1880MHz |
3 0± 1dBm / 1 ± 0.2W |
|
GSM900 |
925-960MHz |
3 0± 1dBm / 1 ± 0.2W |
|
|
CH 14 |
SIB 433 |
433 MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 15/ CH 16 |
WIFI 2.4G |
2400-2500MHz |
3 0± 1dBm / 1 ± 0.2W |
|
WIFI 5.8G |
5500-5900MHz |
3 0± 1dBm / 1 ± 0.2W |
|
|
CH 17 |
5G3700 |
3600-3900MHz |
3 0± 1dBm / 1 ± 0.2W |
|
CH 18 |
3G2100 |
2110-2170MHz |
3 0± 1dBm / 1 ± 0.2W |
|
Fais fab mov: adapter 50 txog 60Hz AC (110-240V AC/12V DC) Tsheb Charger: DC12V IN Built-in roj teeb: 7.4V / 12000mAh Ua haujlwm txuas ntxiv: Nyob ib ncig ntawm 2.0 teev |
|||
|
Qhov Loj: (ntev, dav, qhov siab) 210x130x46mm (tsis muaj kav hlau txais xov) Ntev ntawm tus kav hlau txais xov: 195mm Gain: 2.0dbi |
|||
|
Packing loj: 330*250*80mm Net nyhav: 1.5kg Tag nrho qhov hnyav: 2.0kg |
|||
|
Tag nrho lub zog: 18W |
|||
|
Warranty: ib xyoos txij li hnub xa khoom |
|||
Daim ntawv thov:
Nws tuaj yeem siv rau ntawm cov rooj sib tham, chav sib tham, tsev cia puav pheej, chaw ua yeeb yaj kiab, chaw ua yeeb yaj kiab, kev hais kwv txhiaj, tsev teev ntuj, lub tuam tsev, tsev noj mov, chav kawm, chaw cob qhia, chaw ua haujlwm, tsev txhab nyiaj, tsheb ciav hlau, tsheb npav thiab ntau qhov chaw uas xav tau kev ntsiag to, tsis pub leej twg paub thiab cov ntaub ntawv kev ruaj ntseg
o Rau qee qhov chaw ntawm lub hom phiaj tshwj xeeb xws li tsev kho mob, chaw nres tsheb roj thiab ntau dua, thov ua qhov kev sim ua ntej kom paub tseeb tias tsis muaj kev cuam tshuam rau kev ua haujlwm ntawm lawv cov cuab yeej thiab cov cuab yeej.
