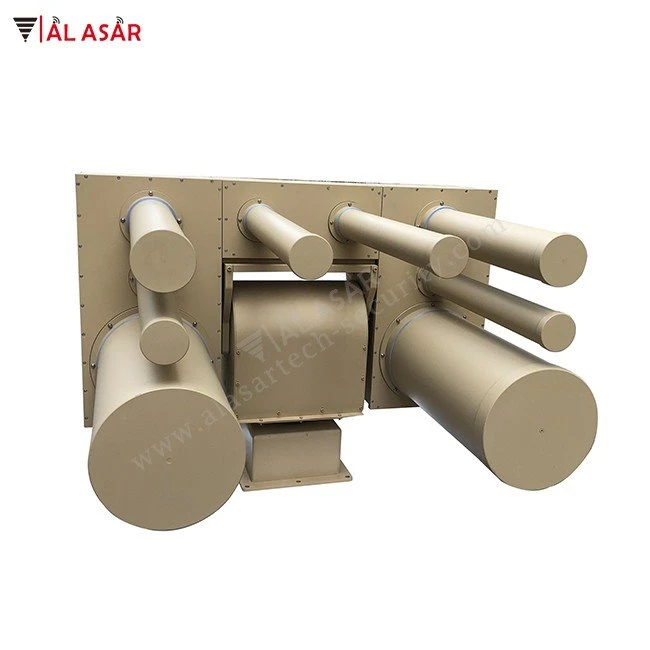

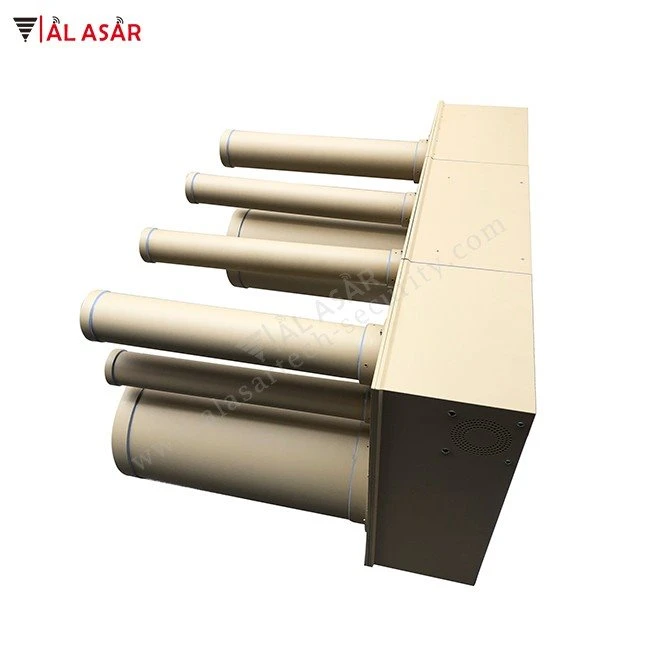

5KM Drone Defender System

Khoom Taw Qhia

Drone tiv thaiv qhov system: Feem ntau suav nrog kev hloov tsheb, kev tswj hwm qhov system, UAV DRONE passive thaum ntxov ceeb toom thiab nrhiav pom, UAV DRONE nquag radar nrhiav pom qhov system, directional precision jamming system, omnidirectional active tiv thaiv system, photoelectric nrhiav thiab taug qab qhov system, UAV DRONEportable jamming khoom, Lub tsheb -mounted fais fab mov system yog tshwj xeeb tsim los ntawm lub tsheb, ib tug reconnaissance kav hlau txais xov array, ib tug reconnaissance tswj tswv tsev, ib tug zaub tswj chaw nres tsheb, ib tug cuam tshuam kav hlau txais xov, photoelectric nrhiav cov cuab yeej, GPS, kev cuam tshuam yias / qaij, kev sib txuas lus khoom siv, hluav taws xob faib hluav taws xob, thiab kev txhawb nqa cables. Qhov kev ceeb toom thaum ntxov yog ntau dua lossis sib npaug li 5 mais, qhov kev cuam tshuam deb Ntau dua lossis sib npaug li 1.5 mais, thiab kev saib xyuas thaum ntxov yog 360 degree. Lub kaw lus muaj lub luag haujlwm tiv thaiv. Los ntawm kev xa xov hluav taws xob hluav taws xob hluav taws xob hluav taws xob, thaj chaw tiv thaiv kev tiv thaiv yog tsim nyob rau hauv qhov chaw tseem ceeb kom tau txais kev tiv thaiv drones los ntawm kev nkag mus rau thaj chaw tiv thaiv kom ua tiav lub hom phiaj ntawm kev tiv thaiv nquag.

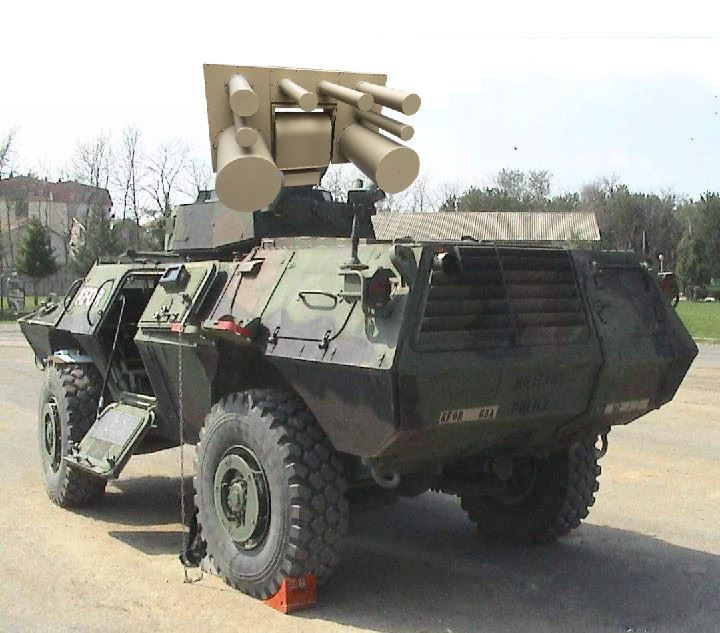

The main functions of the vehicle-mounted UAV DRONE countermeasure system include radar search and detection, photoelectric tracking and recognition, countermeasures, integrated communication, etc.: Radar search and detection: Ka band, horizontal 360 degrees / elevation angle ± 90 degrees, for 010 kilometers Active detection and scanning of low, small and slow targets; photoelectric tracking recognition: using active radar detection signals to implement optical tracking of the target, and using laser imaging to identify the target manually or systematically; countermeasure: using fixed equipment (or portable single Military equipment) Interference and interception of targets with potential safety hazards or threats; Command center: For detection, discovery, photoelectric identification, and countermeasures, customized and executed effective linkage plans based on customer needs; Modular design: own RD capabilities, Through the integration of detection radar, photoelectric tracking, countermeasure equipment, etc., a variety of implementation methods such as the computer room, roof or tower fixation, and vehicle-mounted of the command center can be realized to meet the needs of different customers.

Khoom Feature

1. Lub tsheb-mounted PTZ/Fixed UAV DRONE countermeasure system feem ntau suav nrog kev hloov kho tsheb, tso saib software tswj system (los yog wired tswj), directional precision cuam tshuam system, omni-directional active tiv thaiv system, UAV DRONE portable Kev cuam tshuam cov cuab yeej, thiab lub tsheb fais fab system cuam tshuam kav hlau txais xov (optional radar detection, photoelectric tracking equipment), GPS, cuam tshuam PTZ, khoom siv kev sib txuas lus, kev faib hluav taws xob thiab kev txhawb nqa cables.

2. Npog 360 degree nyob rau hauv tag nrho cov kev taw qhia, thiab lub vojvoog ntawm ib tug ntaus ntawv yuav ncav cuag ntau tshaj 5 kilometers

3. Lub kaw lus muaj lub luag haujlwm tiv thaiv. Los ntawm kev xa xov hluav taws xob hluav taws xob hluav taws xob hluav taws xob, thaj chaw tiv thaiv kev tiv thaiv yog tsim nyob rau hauv qhov chaw tseem ceeb, uas tuaj yeem tiv thaiv UAVs los ntawm kev nkag mus rau thaj chaw tiv thaiv kom ua tiav lub hom phiaj ntawm kev tiv thaiv nquag.

3. Qhov zaus tuaj yeem kho tau,

4. Thaum tsis muaj neeg saib xyuas, cov khoom siv tuaj yeem ua haujlwm tau, nrog rau tag nrho - muaj peev xwm tiv thaiv ib puag ncig ib hnub

5. Lub kaw lus yuav tsum muaj cov yam ntxwv ntawm kev txhim kho yooj yim, kev ua haujlwm yooj yim thiab automation.

6. Kev cuam tshuam teeb liab GPS, GLONASS, Beidou navigation teeb liab thiab 2.4G, 5.8G, 5.2G, 433MHz, 915mhz, cov duab kis tau tus mob teeb liab, zaus hopping teeb liab, teeb liab tswj chaw taws teeb.

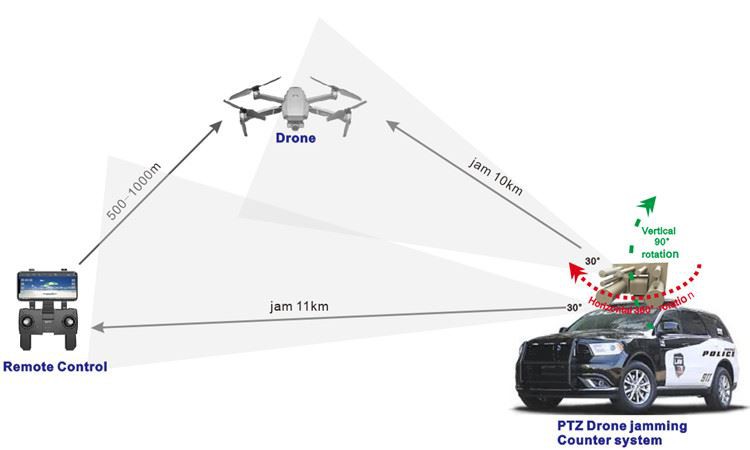

7. Cov khoom ua haujlwm ntawm lub drone teeb liab jammer: txiav tawm tag nrho cov kev sib txuas lus ntawm lub drone thiab tus maub los

8. IP chaw taws teeb tswj, nrog lub hwj chim tswb, sawv yoj tswb, kub tswb muaj nuj nqi

9. Software tswj chaw taws teeb, los ntawm kev sib cuam tshuam txuas ntxiv mus, lub kav hlau txais xov rotating raug taw qhia rau huab cua lub hom phiaj.

10. Nws tuaj yeem txuas nrog cov cuab yeej tshawb nrhiav xws li radar. Tom qab nrhiav tau lub hom phiaj, nws yuav cia li tswj lub turntable thiab tig rau cov kev taw qhia hluav taws xob cuam tshuam. Ua haujlwm tsis tu ncua 724 teev.

11. Lub tshuab tag nrho txais yuav rau -series aluminium alloy cov khoom, thiab cov nyhuv tshav kub yog siab dua li ntawm cov khoom siv txhuas zoo tib yam. Tag nrho ntim thiab sib xyaw tsim, cov cuab yeej siv los tiv thaiv- kev co, IP66 tsis muaj dej, plua plav- pov thawj, thiab tshuaj tsuag ntsev - pov thawj

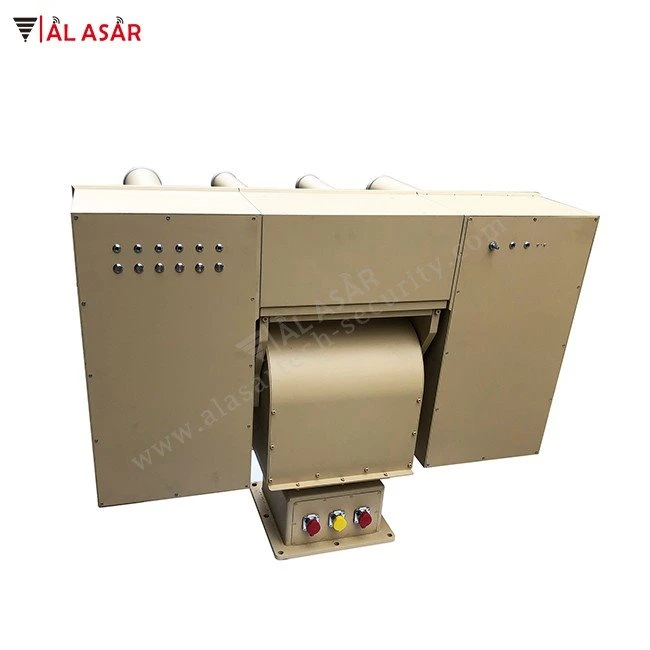

12. Lub khawm ywj siab hloov manually tig rau / tawm qhov cuam tshuam cov teeb liab emission ntawm txhua zaus band, qhov taw qhia qhia cov xwm txheej, thiab qhov ci ntawm qhov taw qhia yog adjustable; lub software remotely tig rau / tawm lub teeb liab cuam tshuam emission ntawm txhua zaus band, thiab ib txhij qhia lub on/off xwm txheej thiab brightness ntawm qhov taw qhia teeb.

13. Software tswj chaw taws teeb, los ntawm kev sib txuas lus txuas mus ntxiv, lub kav hlau txais xov rotating raug taw qhia rau huab cua lub hom phiaj.

14. Lub tshuab tag nrho siv rau -series aluminium alloy cov khoom, thiab cov nyhuv tshav kub yog siab dua li ntawm cov khoom siv txhuas zoo tib yam. Tag nrho ntim thiab sib xyaw tsim, cov cuab yeej siv los tiv thaiv- kev co, IP66 tsis muaj dej, plua plav- pov thawj, thiab tshuaj tsuag ntsev - pov thawj

Product Specificaiton

Kev cuam tshuam ntau zaus thiab lub zog (ib txwm zaus cheb lossis siab -kawg zaus hopping tuaj yeem xaiv tau):

Tswj teeb liab style: FHSS (Frequency Hopping) / DSSS (Direct Sequence Spread Spectrum)

Tswj zaus: 433MHz / 915MHz / 2.4GHz / 5.2G / 5.8GHz / 1.5GHz

Beam dav: kab rov tav 30 degree, ntsug 30 degree

Kev ua haujlwm ntau: Ntau dua lossis sib npaug li 5 km

Lub hwj chim: AC100-240V / 50Hz DC 60V

Kev siv hluav taws xob: 3000W (max)

Lub sijhawm ua haujlwm: tsis tu ncua

Qhov Loj: 906870CM

Net nyhav: 125kg

Kev tiv thaiv qib: IP67 waterproof, tiv thaiv- kev co, plua plav{2}} pov thawj thiab tiv thaiv - ntsev tsuag

System: Txhawb xaim tswj lossis software tswj

Yeem: radar, photoelectric

Humidity: 5% - 95 feem pua

Operating Temp: -20ºC - plus 55ºC

Daim ntawv thov
Tiv thaiv tej thaj chaw deb tswj improvised explosive devices los ntawm kev qhib thiab nres cov neeg ua phem tawm tsam;
Tiv thaiv cov neeg tawg rog tuav cov kws tshaj lij;

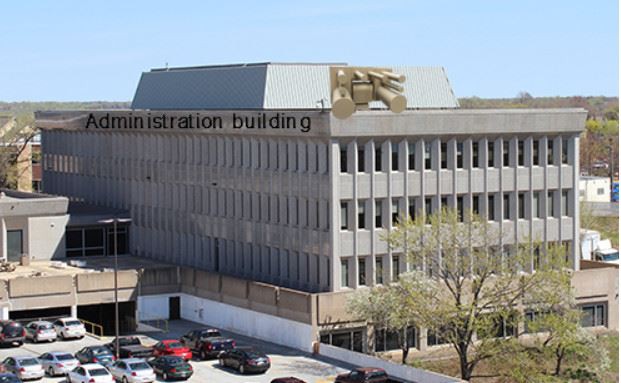

Tiv thaiv qhov chaw tseem ceeb xws li chaw nres tsheb npav / tsheb ciav hlau, plazas, tsev kawm ntawv, kev sib sau ua ke, chaw ntau pob, thiab lwm yam; lub tsev tswj hwm, tsheb tshwj xeeb tub ceev xwm, ect.
Kev pheej hmoo txo ​​qis thiab tshem tawm cov khoom tawg hauv qhov chaw tshwj xeeb;
Tub ceev xwm siv rau VVIP convoy, ECM, tshuaj tiv thaiv, tswj kev kub ntxhov, thiab lwm yam.
Tub rog siv rau kev tswj ciam teb, ECM thiab lwm yam
