Khoom Taw Qhia
Nrog rau qhov muaj koob meej ntawm drones nyob rau xyoo tas los no, nws kuj tau ua rau muaj teeb meem loj hauv qee qhov chaw rhiab heev. Cov koom haum ntiag tug tau raug yees duab tsis pub leej twg paub, cov chaw ncaws pob ncaws pob thiab concerts feem ntau raug thab plaub, thiab tsoomfwv tau raug hem txog kev nyab xeeb thaum mus ncig. Lub hauv paus tub rog ntawm qhov chaw kuaj xyuas raug nyiag los ntawm cov neeg ua phem txhaum cai, thiab lwm yam ...
Nyob rau hauv teb rau cov teeb meem no, Nws yog ib tug portable ntev heev - nrug thiab yooj yim - - siv electromagnetic yoj launcher uas tsis muaj kev cuam tshuam rau tib neeg lub cev thiab lwm yam khoom siv.
Lub Drone txee jammer integrates GPS Glonass teeb liab / 2.4G band / 5.8G zaus band. Cov zaus band tuaj yeem nce ntxiv raws li qhov xav tau. Thaum koj pom lub dav hlau drone nyob ze, nws yog qhov yuav tsum tau tswj nws, thiab thaum twg nws yuav tsum tau tsav tawm Thaum lub drone siv, tig rau 2.4G / 5.8G zaus band thiab taw rau qhov kwv yees ntawm lub dav hlau drone. rau ob peb vib nas this, thiab tom qab ntawd lub drone yuav cia li rov qab los tsev kom ua tiav lub hom phiaj ntawm kev tsav tsheb mus. Thaum koj xav tau kev tsaws thaum muaj xwm txheej ceev, koj yuav tsum tau qhib tag nrho cov zaus ntawm cov khoom siv Drone counter thiab taw nws ntawm qhov kwv yees kev taw qhia ntawm lub dav hlau drone kom yuam UAV mus tsaws.
Nrog rau ntau lub tuam txhab UAV nkag mus rau hauv kev ua lag luam, kev lag luam UAVs tau nkag mus rau hauv cov pej xeem sai sai, cov neeg siv tau nce zuj zus, thiab kev saib xyuas nyuaj. Nws yog ib qho yooj yim los siv los ntawm cov neeg ua txhaum cai los ua kom muaj kev kub ntxhov rau kev ruaj ntseg thiab kev ua haujlwm zais cia. Hauv kev ua haujlwm thoob ntiaj teb, peb tau ua qhov cuam tshuam los tiv thaiv- cov qauv ntsuas tiv thaiv qhov tshwm sim ntawm lub dav hlau dub ntawm cov tsheb tsis muaj neeg tsav dav hlau, xws li tsis ua raws li kev tiv thaiv thiab kev tswj hwm. Cov drones tsis raug cai yuav muab kev soj ntsuam huab cua, kev nyab xeeb huab cua ua rau muaj kev phom sij loj.

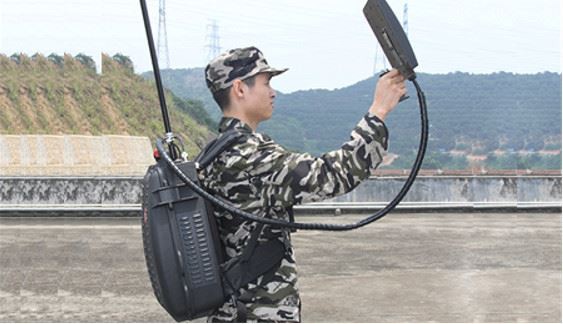

Txiv neej- pob portable low altitude UAV Drone jammer control system, Siv lub tshuab tam sim no siab heev jamming, kev cuam tshuam ntawm lub davhlau tswj teeb liab thiab navigation teeb liab tau tshwj xeeb ua tiav kom cov cuam tshuam cuam tshuam zoo heev, thiab qhov sib nrug deb yog tiag tiag ntev (qhov jamming nrug yog ntau tshaj 1 km, cov hluav taws xob tsawg thiab lub teeb), Yooj yim rau siv. Ib tug tub rog portable, tsis yog -kev puas tsuaj precision ntaus!
Khoom Feature
Kev ntsuas qhov ntsuas tau zoo: 400-1000 meters.
Ntau-band kev pab cuam: 433MHz, 1.5GHz, 2.4GHz, 5.8GHz
Portable tsim: sib xyaw ua ke, tes- tuav, xub pwg-mounted, thiab sawv- ib leeg.
Countermeasure mode: yuam kev tsaws thiab yuam kom ntiab tawm.
Kev siv siab -tau txais broadband kav hlau txais xov muaj kev ncaj qha zoo dua, zam kev cuam tshuam ntawm ntau lub kav hlau txais xov, thiab txhim kho cov khoom ruaj khov.
Multi-Band ywj siab hloov tswj, ua haujlwm qhia lub teeb.
Kev ua haujlwm hloov pauv ua rau nws yooj yim dua rau siv.
Nrog lub vijtsam zaub, tiag tiag - lub sijhawm tso saib ntawm kev ua haujlwm ntawm txhua qhov module.
Overcurrent thiab overvoltage tiv thaiv Circuit Court txhim kho cov khoom ntseeg tau.
Loj - lub peev xwm lithium roj teeb tuaj yeem ua haujlwm tsis tu ncua rau 2 teev.
Product Specificaiton
Hluav taws xob Specifications
| 2400-2500MHz | 20W | |
2400-2500MHz | 20W | ||
GPS L1 ntxiv rau GLONASS L1: | 40W | ||
5725 GHz-5875GHz: | 20W | ||
Omni Kav hlau txais xov | 433MHz: | 20W | |
RF lub zog Tag nrho cov hwj huam: 120 W | |||
Ob 2.4GHz Bands 20W ib pawg (2 bands hauv Directional Antenna, 1 band hauv Omni Kav hlau txais xov) | |||
Fais fab mov: | AC adapter (AC220V / 110V-DC27V lossis 27V / 18Amp) | ||
Jamming Range: | Radius 4001000 Meters | ||
Lub sijhawm ua haujlwm roj teeb | 1-2 Teev (kev xaiv ntau ntxiv txog lub sijhawm ua haujlwm roj teeb) | ||
Dimension: 390 x 340 x 130 mm (HWD) | |||
Nyhav: 14 Kg (kwv yees) tsuas yog chav tsev tseem ceeb tsis suav nrog kav hlau txais xov tag nrho cov khoom siv | |||
Kev khiav hauj lwm kub: -20 degree ntxiv rau 60 degree | |||
Plaub Bands hauv Ib Txoj Cai Kav Kav Hlauv Specification
Antenna Electrical Specifications | |||||
Ntau zaus | 1575-1620 MHz | 2400-2500MHz | 2400-2500MHz | 5150-5875 MHz | |
Tau txais | 8dbi ib | 12dBi ib | 12dBi ib | 15dBi ib | |
VSWR | Tsawg dua los yog sib npaug li 1.5 | Tsawg dua los yog sib npaug li 1.5 | Tsawg dua los yog sib npaug li 1.5 | Tsawg dua los yog sib npaug li 1.5 | |
Polarization | Ntsug | Ntsug | Kab rov tav | Ntsug | |
Kab rov tav beamwidth | 65 degree | 65 degree | 65 degree | 60 degree | |
Vertical beamwidth | 30 degree | 15 degree | 15 degree | 7 degree | |
Pem hauv ntej mus rau nram qab ratio | Ntau dua lossis sib npaug li 24dB | Ntau dua lossis sib npaug li 25dB | Ntau dua lossis sib npaug li 25dB | Ntau dua lossis sib npaug li 25dB | |
Input Impedance | 50Ω | 50Ω | 50Ω | 50Ω | |
Max input zog | 50W | 50W | 50W | 50W | |
2400-2500MHz npog ob Vertical thiab Kab rov tav Polarization | |||||
Txuas | N-M | ||||
xob tiv thaiv | Direct Av | ||||
Mechanical Specifications | |||||
Qhov ntev | 25525545mm | ||||
Qhov hnyav | 1.1kg ib | ||||
Radiator Khoom | Alumina | ||||
Radome Khoom | Dub | ||||
Daim ntawv thov
Tiv thaiv tej thaj chaw deb tswj improvised explosive devices los ntawm kev qhib thiab nres cov neeg ua phem tawm tsam;
Tiv thaiv cov neeg tawg rog tuav cov kws tshaj lij;
Tiv thaiv qhov chaw tseem ceeb xws li chaw nres tsheb npav / tsheb ciav hlau, plazas, tsev kawm ntawv, kev sib sau ua ke, chaw ntau pob, thiab lwm yam;
Kev pheej hmoo txo qis thiab tshem tawm cov khoom tawg hauv qhov chaw tshwj xeeb;
Tub ceev xwm siv rau VVIP convoy, ECM, tshuaj tiv thaiv, tswj kev kub ntxhov, thiab lwm yam.
Tub rog siv rau kev tswj ciam teb, ECM thiab lwm yam
