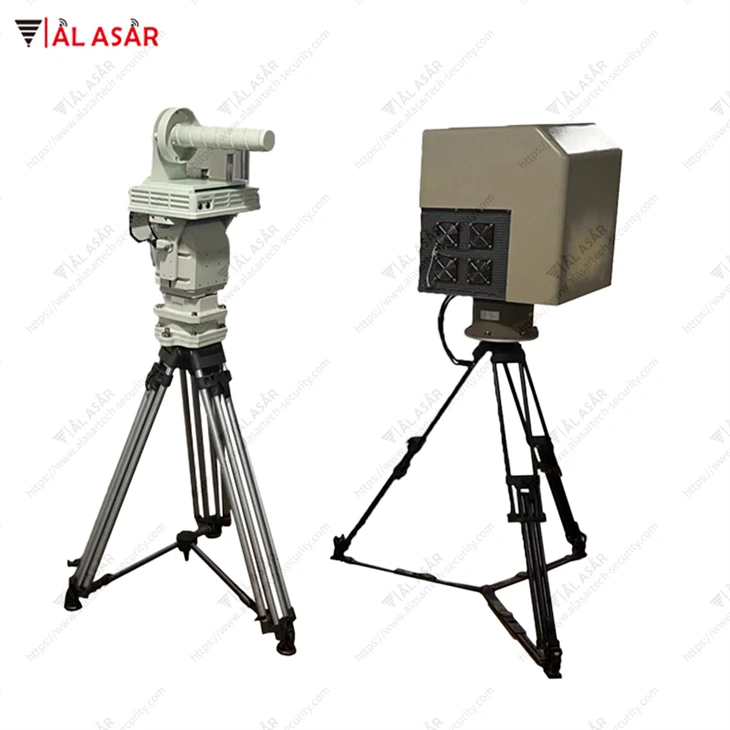

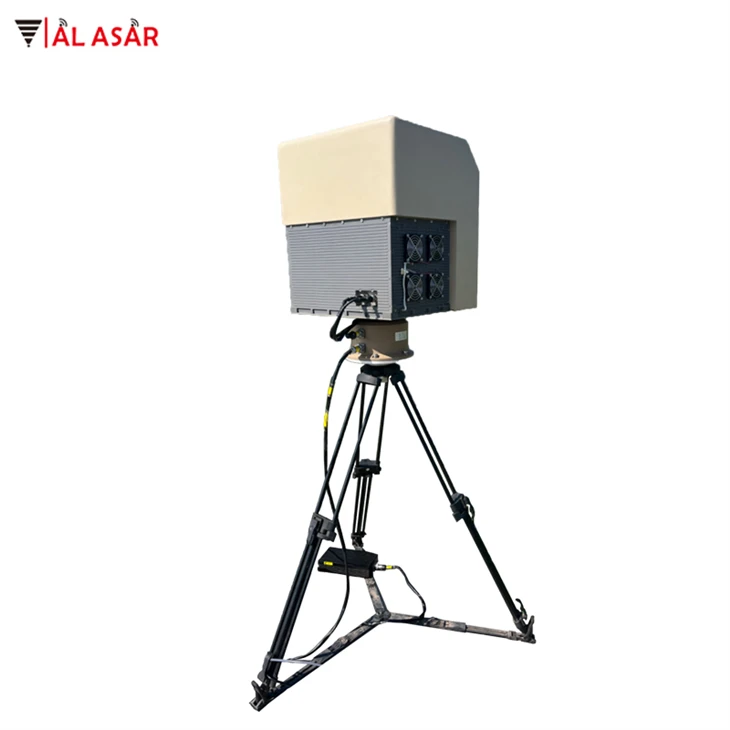

Full Band Anti Drone Jammer

Cov khoom muag

AAT-FD-10KM Full-band anti drone 300-6000MHz jamming tag nrho cov khoom siv drone tuaj yeem txuas nrog cov cuab yeej nrhiav kom pom tag nrho, tau txais cov lus qhia cuam tshuam los ntawm cov cuab yeej nrhiav kom pom tag nrho, thiab tsim 300MHz-6000MHz broadband cuam tshuam cov teeb liab los cuam tshuam UAV kev sib txuas lus zaus bands thiab pab kom nkag mus rau hauv UAVs. Ua kev tsaws thaum muaj xwm txheej ceev lossis rov qab los, thiab ua tiav omnidirectional thiab kev taw qhia ntau qhov kev xaiv.

Lub anti-UAV tag nrho-band anti drone jammer tsuas yog ua tiav cov kev taw qhia thiab puv-band hluav taws xob jamming ntawm lub hom phiaj dav hlau (qauv qauv, UAVs, thiab lwm yam), thiab tswj lub turntable tig los ntawm software kom ua tiav 0 degree rau 360 degree azimuth kev pab them nqi, tso cai rau cov qauv dav hlau thiab UAVs rau Poob tswj thiab navigation signals; Lub kaw lus muaj peev xwm cuam tshuam nrog UAV cov chaw taws teeb tswj, cov duab xa mus thiab satellite navigation signals, ua rau cuam tshuam UAV rov qab los (tsuas yog cuam tshuam nrog cov chaw taws teeb tswj thiab cov duab kis tau tus mob, tsis yog navigation signals) lossis yuam kev tsaws (Lub peev xwm cuam tshuam nrog tej thaj chaw deb tswj, duab xa mus, thiab navigation teeb liab tib lub sij hawm nws tuaj yeem txuas nrog radar thiab photoelectric systems, txais cov teeb liab los ntawm kev tswj hwm qhov system, thiab cia li taw tes rau lub hom phiaj cuam tshuam raws li lub teeb liab los cuam tshuam, thiab tuaj yeem kho qhov teeb meem. cuam ​​tshuam kev taw qhia raws li lub sijhawm hloov tshiab azimuth teeb liab; muaj nuj nqi tom qab lub hwj chim-on, uas tuaj yeem txiav txim siab seb cov khoom siv sab hauv puas ua haujlwm zoo;

Khoom nta

1.Lub portbale tsim yog ib qho yooj yim mus zais thiab tsis xav tau ib tug turntable kom ua tau 360-degree omnidirectional thiab directional;

2. Ua tiav kev sib txuas lus ntau zaus cuam tshuam nyob rau hauv tag nrho cov zaus band, nrog rau cov tsheb tsis muaj neeg tsav dav hlau nyob rau hauv cov zaus tsis sib xws thiab zaus hloov UAVs;

3.Supports ib txhij tsub kom txog li tsib zaus bands, txhua qhov tso zis teeb liab yog 50W, kom ntseeg tau cov kev xav tau ntawm kev tsuj ntawm cov ntawv thov thiab cov drones tshiab;

4. Raws li cov txiaj ntsig kev soj ntsuam dynamic (ntau zaus, kev taw qhia) pom los ntawm cov cuab yeej tshawb nrhiav, cov cuab yeej tiv thaiv tuaj yeem ua tiav cov kev taw qhia precision ntaus, yuam lub dav hlau ua kom muaj xwm txheej ceev thiab rov qab los;

5. Kev xaiv kev teeb tsa ntawm kev cuam tshuam tuaj yeem ua tiav, xws li kev taw qhia kev tawm tsam, kev tawm tsam kev lag luam, kev tawm tsam omnidirectional thiab lwm yam kev xaiv, tsis tas yuav tsum tig cov khoom siv;

6.Qhov cuam tshuam tsis tuaj yeem raug teeb tsa kom ntseeg tau tias muaj kev sib ntaus sib tua tiv thaiv ntau hom UAVs;

Khoom Parameter

1.Output zaus: 300MHz ~ 6000MHz;

2.Output zog: 50W (kev taw qhia cuam tshuam nrug Ntau tshaj lossis sib npaug rau 10km, omnidirectional

cuam ​​tshuam deb Ntau tshaj lossis sib npaug li 5km);

3.Harmonic suppression: 40dBc;

4. Simultaneous emission ntawm cuam tshuam zaus bands: 5 bands (300-1000MHz,

1000-2400MHz, 2400-2500MHz, 5725-5850MHz, 2400-6000MHz)

5.Single-band cuam tshuam bandwidth: Ntau dua lossis sib npaug li 200M

6.Directional kav hlau txais xov npog: 45 degrees horizontally thiab 45 degrees pitched

7.Overheating tiv thaiv: 85 degree

8. Ua haujlwm kub: -40 degree rau +65 degree ;

9.Txhua qhov ntev: 630mm × 630mm × 560mm;

10. Khoom hnyav: tsawg dua 30 kg

11. Fais fab mov: 220V AC;

12.Control: 10M / 100M RJ45 network chaw nres nkoj.
