IED Jammers

Khoom Taw Qhia

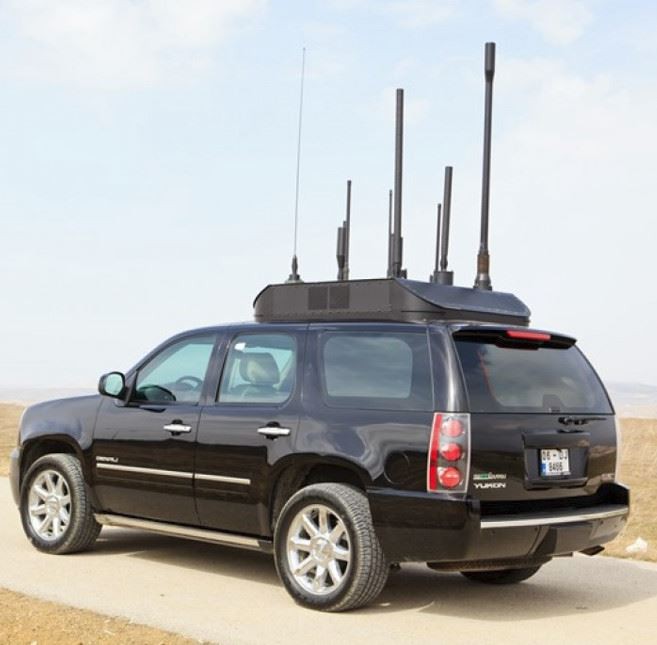

Tsheb Bomb Signal Jammer Feem ntau ntawm cov kav hlau txais xov siv zais kev teeb tsa tsim, nruab nrog peb - nrawm tso zis hluav taws xob hloov pauv cuam tshuam kev tiv thaiv thev naus laus zis, lub zog xa hluav taws xob tiag tiag tuaj yeem siab txog 2050W, kom muaj txiaj ntsig zoo cuam tshuam lub vojvoog ncig lub tsheb lub cev yog loj dua, thiab nws yog nruab nrog ib tug ua tiav broadband cuam tshuam system. Kev tiv thaiv kev cuam tshuam tuaj yeem txuas ntxiv thiab ib txhij npog lub xov tooj cua zaus sib txuas lus zaus band feem ntau siv los ntawm cov neeg ua phem rau detonate cov foob pob hauv kev los ntawm kev tswj cov chaw taws teeb wireless thiab cuam tshuam nrog cov chaw taws teeb tswj cov khoom tawg (RCIED)

20-6000MHz, tuaj yeem ntsia tau rau hauv cov tsheb sib txawv.

Txhawm rau tiv thaiv cov tub rog thiab pab pawg VIP nrog rau qee qhov chaw tseem ceeb los ntawm txoj kev- sab nraum cov khoom siv hluav taws xob tawg (RCIED) kev tawm tsam tau dhau los ua qhov kev sib tw thoob ntiaj teb thiab ua haujlwm loj heev hauv cov ntaub ntawv ruaj ntseg. Lub tsheb IED Jammer tshwj xeeb yog kho kom haum rau qhov dav -band foob pob kaw uas ib txhij npog cov xov tooj cua muaj feem cuam tshuam.

Nws yog tsim los rau mounted nyob rau hauv lub cev ntawm lub tsheb los tiv thaiv cov criminals los yog cov neeg phem uas siv los detonate RCIED.
Raws li qhov sib txawv ntawm qhov chaw ib puag ncig teeb liab, cov cuab yeej siv tau los txiav GSM, CDMA, GPS, DCS, PHS, 2.4G, 3G, 4G, 5.8G thiab lwm yam khoom siv sib txuas lus wireless hauv ib lub vojvoog ntawm 100-1000. meters los xyuas kom meej qhov zoo ntawm cov teeb liab tswj.
Meanwhile, according to the actual situation of the user's target area, different vehicle models can be selected for installation.

Khoom Feature

1. RCIED teeb liab Jammer jamming thev naus laus zis los ua kom qhov kev teeb tsa zaus ntau dua;

2. Nruab ib qho ultra-wide band jammer hauv lub tsheb: 20MHz-6000MHz

3. Tsis tu ncua thiab ib txhij cuam tshuam nrog cov xov tooj cua zaus cov cim hauv cov kab hluav taws xob uas nquag siv.

4. Nws tuaj yeem ntsia tau rau hauv cov tsheb sib txawv ntawm - tsheb.

5. Lub tswv yim pib- ua kom txias txias yog kev sib xyaw ua ke hauv cov khoom siv kom ntseeg tau tias tus tswv tuaj yeem ua haujlwm txuas ntxiv.

6. Ib qho kev khiav hauj lwm platform yog tsim los ntawm tus neeg tsav tsheb kom yooj yim rau kev khiav lag luam, thiab ib qho kev hloov rau / tawm yog muab rau txhua tus neeg zaus band.

7. Lub cev lub tsheb tau dhau qhov kev hloov kho xov tooj cua tshwj xeeb los tiv thaiv kev nyab xeeb ntawm tus neeg tsav tsheb thiab VIP cov neeg nyob.

8. Tag nrho cov modules tuaj yeem ua haujlwm tsis tu ncua lossis ib txhij.

9. Lub tsheb jamming system nrog siab - lub tshuab hluav taws xob, nrog kev ua haujlwm tsis zoo - suab nrov ua haujlwm.

10. Configured nrog ib tug wired tej thaj chaw deb tswj vaj huam sib luag los hloov On/OFF txhua jamming modules.

System operation can be performed in the driver's console unit. Each module can turn ON/OFF.

11. Integrated ntse active txias system kom paub tseeb tias cov cuab yeej ua hauj lwm tsis tu ncua

12. AC lossis DC fais fab mov tuaj yeem xaiv tau;

Product Specificaiton

Ua haujlwm zaus: 20MHz 6000MHz, puv -band nrog seamless shielding

Cov zis hluav taws xob: Txog 2050W

Kev siv hluav taws xob: 4200W

Shield range: 100m500m（Depending on the environment of signal strength）

Internal modulation mode: Direct digital frequency synthesis（DDS）

Fais fab mov: 220VAC28VDC

Scanning ceev: tsau

Kav hlau txais xov: Sab nraud Omni-Directional Antenna, 360 degree tiv thaiv

Fais fab Amplifier Protection

A. Overheating tiv thaiv- Thermal protector

B. Kev tiv thaiv tam sim no

C. High input voltage thiab low voltage tiv thaiv

D. Voltage sawv yoj piv tiv thaiv: kav hlau txais xov txuam nrog rau qhib Circuit Court thiab luv Circuit Court

Chaw taws teeb tswj (hlau tswj LCD vaj huam sib luag):

A. Tso zis fais fab LCD qhia

B. Txhua CH tso zis hluav taws xob hloov kho.

C. Txhua CH tso zis ON/OFF tswj.

D. Txhua CH shield zaus teeb tsa.

Jammer Module: Txhua Jammer module nrog tus kav hlau txais xov tuaj yeem siv los ua ib qho jammer

Cooling System: Systematic ntse txias system (Ntxuam)

Kev Tiv Thaiv Kev Tiv Thaiv: VSWR , Tshaj -voltage, tshaj - tam sim no , tshaj - kub

Kev them nyiaj yug: Txhawb DC 24-28V ncaj qha fais fab ntawm kev ua haujlwm.

Loj: 625x510x700mm

Nyhav: txog 100kg

Ua haujlwm kub: -10 degree - ntxiv rau 55 degree

Humidity: 5% -90 feem pua

System accessories:

16pcs sab nraud omni kav hlau txais xov;

16pcs 4m ntev feeder nrog connector siv rau kav hlau txais xov thiab khoom siv

1 teeb tsheb ru tsev kav hlau txais xov installation lub thawv

1 teeb hlau tswj LCD vaj huam sib luag

Backup roj teeb: lithium roj teeb

Daim ntawv thov

Tub rog Convoy, VIP tiv thaiv, RIOT Control, SWAT Team, EOD Operations, Electronic countermeasure, thiab lwm yam

Cov tub rog pov tseg pov tseg, VIP tiv thaiv, Tub Ceev Xwm Tshwj Xeeb (SWAT), tub rog kev nyab xeeb, tub rog foob pob, tiv thaiv-cov neeg phem, tiv thaiv- cov tshuaj, cov chaw tswj hwm ciam teb, cov neeg ua haujlwm saib xyuas, cov tub ceev xwm no cov neeg ua haujlwm uas tau txais txiaj ntsig zoo los ntawm kev xa tawm ib qho ntawm qhov zoo tshaj plaws no - hauv - chav kawm RF jamming kev daws teeb meem.

Lawv tuaj yeem ua tus txheej txheem tswj hwm kev cai lij choj kom txo tau txoj hauv kev uas cov neeg ua txhaum cai xau cov ntaub ntawv.
