Khoom Taw Qhia
Tub ceev xwm jammer / Portable Remote control jammer Detonation thiab tsis pub lwm tus paub to, uas tshwm sim los ntawm Txoj Kev-side Remote Improvised Explosive Device (RCIED) tau ua rau muaj kev hem thawj loj rau lub neej kev nyab xeeb ntawm cov tub rog pov tseg foob pob thiab tub ceev xwm zoo ntawm kev tiv thaiv{{1 }}kev ua phem unit. Txhawm rau kom ua tiav cov txheej txheem ntawm kev tswj hwm txoj cai lij choj thiab tib neeg txoj sia nyob nyab xeeb tau yog qhov kev sib tw loj heev thiab ua haujlwm hauv ntau qhov chaw hauv ntiaj teb.
Peb txoj kev daws teeb meem AAT-VIP-JAM8-13CH, lub zog siab DDS Convoy jamming system, siv cov cuab yeej siv tau zoo tshaj plaws thiab txhim khu kev qha RF jamming technology thiab nruab nrog kev sib xyaw ua ke ntawm kev sib txuas lus dav dav.
AAT-VIP-JAM8-13CH Protable mobile xov tooj jammer tuaj yeem npog tsis tu ncua thiab ib txhij, tag nrho cov RF kev sib txuas lus zaus 20-2700MHz 5000-6000MHz.

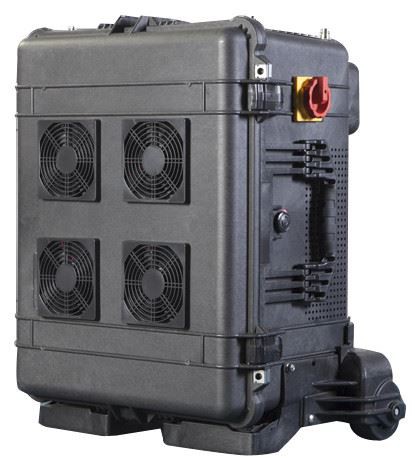

AAT-VIP-JAM8-13CH tag nrho protable multi band DDS jamming system, yog tsim los nrog ib tug ruggedized trolley hom rooj plaub, lub teeb yuag, siab mus thiab kev cia siab, cov cuab yeej no yog configured nrog 8 txawv jamming modules, Jamming zaus tuaj yeem ua tau ntau dua 10 bands, jamming zaus module tuaj yeem ncav cuag 250-400 watt tso zis zog.
AAT-VIP-JAM8-13CH yog qhov tshwj xeeb tshaj yog yooj yim rau nruab thiab ua haujlwm: tsuas yog txuas cov kav hlau txais xov xaiv thiab qhib qhov xav tau ntau zaus. Tag nrho cov kev khiav hauj lwm tswj thiab LED ntsuas yog sab nraud ntsia, lub tsev ua hauj lwm los ntawm lub sab hauv los yog sab nraud roj teeb, los yog muaj peev xwm kos lub hwj chim ntawm AC mains los yog ib tug haum DC fais fab mov.
Kev tsim qauv dav dav raws li kev ua tub rog raws li cov qauv kev ua tau zoo thoob ntiaj teb thiab cov kev xav tau, peb cov kev lag luam hauv -tsev tswj kev tswj hwm zoo tshaj plaws raws li cov qauv kev ua tau zoo, kev ntseeg siab thiab ntev - lub neej voj voog.
Raws li peb cov qauv tsim, peb tuaj yeem hloov kho peb cov txheej txheem ntxiv rau cov neeg siv khoom- cov xwm txheej tshwj xeeb ob qho tib si rau kev siv tub rog thiab pej xeem txhawm rau muab cov kev daws teeb meem zoo tshaj plaws rau tus kheej.
Khoom Feature
▲ High-power protable Multip-band jammer
▲ Modular construction for easy maintenance repair and upgrade,
▲ Jammer up to 8 different jamming module simultaneously, and cover up to 10 different frequency band.
▲ 400W RF output power per protable box, (One unit set total 15 Channels)
▲ Equipped with a remote control unit, the operator can on/off each module through the wired remote controller.
▲ Fully portable trolley-type case.
▲ Internal or external battery, AC main or DC power.
▲ External LCD display to indicate the battery level.
▲ Designed with external back up battery input, adapted to external battery, Facilitating the battery timely for field use
Daim ntawv thov
Tub rog Convoy, VIP tiv thaiv, RIOT Control, SWAT Team, EOD Operations, Electronic countermeasure, thiab lwm yam
Cov tub rog pov tseg pov tseg, VIP tiv thaiv, Tub Ceev Xwm Tshwj Xeeb (SWAT), tub rog kev nyab xeeb, tub rog foob pob, tiv thaiv-cov neeg phem, tiv thaiv- cov tshuaj, cov chaw tswj hwm ciam teb, cov neeg ua haujlwm saib xyuas, cov tub ceev xwm no cov neeg ua haujlwm uas tau txais txiaj ntsig zoo los ntawm kev xa tawm ib qho ntawm qhov zoo tshaj plaws no - hauv - chav kawm RF jamming kev daws teeb meem.
Lawv tuaj yeem ua tus txheej txheem tswj hwm kev cai lij choj kom txo tau txoj hauv kev uas cov neeg ua txhaum cai xau cov ntaub ntawv.
Product Specificaiton
Raws li nws cov qauv tsim thiab kev teeb tsa peb cov jammer digital tuaj yeem ua haujlwm tau yooj yim, pabcuam, kho thiab yoog raws li nws yuav tsum tau siv.
Digital Jammer modules tuaj yeem hloov tau yooj yim thiab nrawm ib yam li hloov lub xov tooj ntawm tes roj teeb.
Qauv No.AAT-VIP-JAM8-13CH | |||
RF zaus band (MHz) | RF tso zis zog (Watt) | Daim ntawv thov | Lus ceeb toom |
20-100 | 50W | HF, Raido Tswj cov khoom ua si, Tsheb tswb, | Qhov no zaus rau jamming neeg phem tej thaj chaw deb tswj IED zaus band. |
135-200 | 50W | Walky-talky(VHF), | |
200-300 | 50W | Chaw taws teeb tswj, Walky-talky(UHF400), | |
300-470 | 50W | Chaw taws teeb tswj, Walky-talky(UHF400), Tsheb tswb, Cellular NMT, Cellular 450 | |
832-894 | 50W | GSM800 | Tunisia mobile kev sib txuas lus zaus band downlink, tsuas yog jamming downlink, jamming uplink yuav cuam tshuam lub hauv paus chaw nres tsheb. |
925-960 | 50W | GSM900 | |
1805-1880 | 50W | 1800 | |
1920-1990 | 50W | 1900 | |
2110-2170 | 50W | 3G | |
2620-2690 | 50W | 4G LTE | |
1520-1580 | 50W | satellite GPS, Elipso, Inmarsat , GLONASS, and so on > | Jamming GPS teeb liab, yuav nrhiav tsis tau nrhiav qhov chaw. |
2400-2500 | 50W | Wifi, WLAN, Bluetooth, Zigbee | Jamming kev sib txuas lus wireless |
5720-5875 | 20W | 5.8g wifi | |
Tag nrho RF zog | 620W | ||
Ntau zaus | 20-2700MHz, 5000-6000MHz | ||
Tag nrho RF zog | 620W | ||
Jamming nrug | 80-250M (nyob ntawm qhov chaw teeb liab lub zog;) | ||
Jammer module tooj | 7CH ntxiv rau 6CH (Ob Kos Bar Portable Jammer) | ||
Jamming Source | Digital Signal Source Synthesize Technology | ||
Antenna Hom | High Gain Ominidirectional kav hlau txais xov | ||
Tus naj npawb ntawm cov kav hlau txais xov | 13 | ||
Roj teeb | Tsis muaj roj teeb, ncaj qha txuas vechile zog | ||
Jammer Module | Txhua Jammer module nrog tus kav hlau txais xov tuaj yeem siv los ua ib qho jammer | ||
Txias System | Systematic ntse txias system (Ntxuam) | ||
Kev Tiv Thaiv | VSWR , Tshaj -voltage, tshaj -tam sim no, tshaj -kub | ||
Qib tiv thaiv | shockproof, tractable, waterproof, robust, nrog kaw kaw, IP66 Rainproof | ||
Jammer Loj | 5 74627m | ||
Qhov hnyav | 40kg / pcs | ||
Ua haujlwm kub | -20ºC - plus 80ºC | ||
Ua haujlwm av noo | 5 mus rau 80 feem pua | ||
Fais fab mov | AC 110-220V DC 24V-28V Cov | ||
Txhawb nqa | Txhawb DC 24-28V ncaj qha fais fab ntawm kev ua haujlwm. | ||
Warranty | 2 Xyoo | ||
Chaw taws teeb tswj:
Tsim nrog lub chaw tswj chaw taws teeb wired, pab tus neeg teb xov tooj los tswj txhua qhov module hauv txhua qhov xwm txheej.
Qhov zoo tshaj plaws ntawm daim ntawv thov:
Yuav ua tau protable thiab tsheb mounted, uas nws biggest kom zoo dua nyob rau hauv daim ntawv thov. Ob chav nyob tuaj yeem ua ke tag nrho cov kab hluav taws xob tau teeb tsa hauv lub tsheb, nruab nrog lub tsheb mount antennas raws li qhov xav tau.
