Khoom Taw Qhia
The system for entering the prison or for the mobile operator communication system has special requirements of that user terminal in the communication coverage area, according to the user's classification, communication permission or communication blocking. For special target users, according to communication system difference, it is also possible to conduct further communication checks.
Kev tswj hwm kev sib txuas lus suav nrog cov kev sib txuas lus hauv qab no: CDMA, GSM, SCDMA, DCS1800MHz, PCS1900MHz, PHS, 3G WCDMA, 4G LTE thiab lwm yam teeb liab kev sib txuas lus ntawm tes.
Tag nrho cov txheej txheem tuaj yeem hloov kho raws li cov kev xav tau ntawm cov neeg siv khoom tshwj xeeb, thiab tuaj yeem ua tau raws li kev sib txuas lus tshwj xeeb uas yuav tsum tau ua ke ntawm ntau lub teb chaws lossis cheeb tsam.

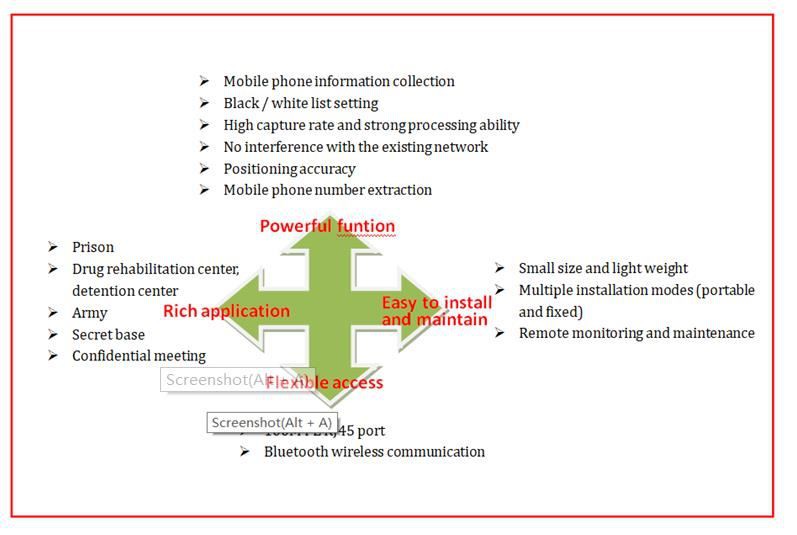

Cov haujlwm tseem ceeb ntawm qhov system muaj xws li:
● According to different communication system of in all coverage areas to terminal uers IMSI capture
● To captured IMSI filtering whitelist and blacklist
● Whitelist users release back to the macro network for normal communication.
● Not Whitelist user communication blocking and shielding
● Conduct communication monitoring for blacklist users who meet certain conditions, Or with other device for positioning
● 20W coverage distance directional antenna jamming diameter 1000-2000M, omnidirectional antenna jamming radius 500-800M.
● The detailed functions of the various communication systems included: Macro network scanning, Automatic and manual network settings, IMSI / ESN capture, Black and white list setting and filtering, Access policy configuration, In the network UE status monitoring, Report terminal signal strength.
● For TDD-LTE and FDD-LTE, the captured UEcan be redirected to the specified 2G and 3G systems.
Product Specificaiton
Ua haujlwm zaus band | CDMA, GSM, SCDMA, DCS1800MHz, PCS1900MHz, PHS, 3G WCDMA, 4G LTE thiab lwm yam | |
Muaj peev xwm | Unit box ncej max cab kuj yoj: 4 | |
Kev ua tau zoo | Maximum RF tso zis zog: 40dBm / Band, ib leeg tso zis | |
Power adjustment range 0-30dB, adjustment step size 1dB, adjustment error±0.5dB | ||
Synchronization raug: 0.1ppm | ||
Jamming nrug | 20W Directional kav hlau txais xov jamming txoj kab uas hla 1000-2000M, Omnidirectional kav hlau txais xov radius 500-800M | |
WiFi Kev Ua Haujlwm | Txhawb 2.4G ib chav | |
Lub zog 20dBm | ||
Txhawb 802.11b/g/n | ||
Chaw nres nkoj | RJ451 (WAN) Kev them nyiaj yug rau kev nkag hauv zos | |
N-J2 | 2 RF port（ANT0,ANT1） | |
SMA-J | WiFi kav hlau txais xov (tus qauv), Kev them nyiaj yug rau kev nkag hauv zos | |
SCAN Synchronization kav hlau txais xov | ||
GPSantenna chaw nres nkoj | ||
Sijhawm sync | Kev them nyiaj yug ib band sync GPS lub sij hawm | |
Txhawb sync NTP neeg rau zaub mov sij hawm, ib pawg | ||
Kev ntes tus lej ua haujlwm | Idle Static davhlau ya nyob twg capture tus nqi Ntau dua los yog sib npaug rau 95 feem pua, Txawb davhlau ya nyob twg ntes tus naj npawb ntau dua los yog sib npaug rau 90 feem pua | |
Kev sib txuas lus jamming | Software kev twb kev txuas wireless, ntsuab jamming | |
Npe dawb | Txhawb cov neeg siv whitelist tso tawm kev sib txuas lus ib txwm rau pej xeem network | |
Tus neeg siv txoj cai teeb tsa | Txhawb thawb 4G / 3G / 2G yeem | |
Lub sijhawm pib qhov system | Tsawg dua los yog sib npaug li 300s | |
Kev siv ntau tshaj | 4 box frame total consumption >1000W | |
Dimension | ||
Qhov hnyav | ||
Khoom siv | aluminium | |
Qib tiv thaiv | IP32 / IP65 opital | |
Xim | Dub | |
Hwj chim | AC 220 | |
Environmental xav tau | Indoor environment,-30 degree -55 degree ,humidity＜85％ | |
Yog xav paub ntxiv, thov email rau peb.
